Запчасти Case IH MAXXUM 140 (90.124.AN[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - SUSPENSION COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

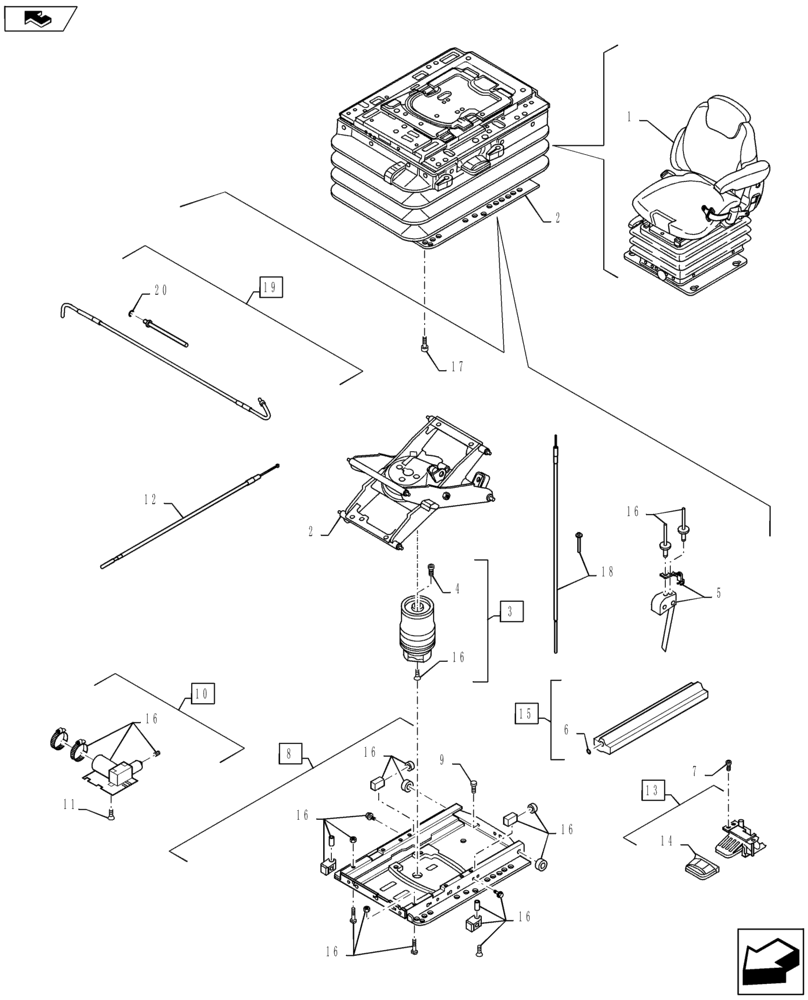

![Схема запчастей Case IH MAXXUM 140 - (90.124.AN[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - SUSPENSION COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/5161796.png)
9
17
home
14
12
3
20
16
19
18
11
16
10
8
6
7
15
2
5
2
16
16
1
16
16
4
16
16
13
№
Артикул
Название
Примечание
Количество
1
84171102
SEAT
1шт.
2
84191066
SUSPENSION
Incl 17
1шт.
3
84190972
SHOCK ABSORBER
Incl 4, 16
1шт.
4
84191012
REPAIR KIT
1шт.
5
84190962
KIT
Incl 16
1шт.
6
84191086
REPAIR KIT
1шт.
7
84191017
REPAIR KIT
1шт.
8
84190976
PLATE
Incl 9, 16
1шт.
9
84191014
REPAIR KIT
1шт.
10
84190980
AIR COMPRESSOR
Incl 11, 16
1шт.
11
84191008
REPAIR KIT
1шт.
12
84190997
BOWDEN CONTROL
1шт.
14
84191000
HANDLE
1шт.
15
84191082
SERVICE KIT
Incl 6
1шт.
16
84190975
REPAIR KIT
1шт.
17
84191020
REPAIR KIT
1шт.
18
84191077
TUBE
1шт.
19
84191079
KIT
Incl 20
1шт.
20
84191016
REPAIR KIT
1шт.
Выбрано товаров: 20
