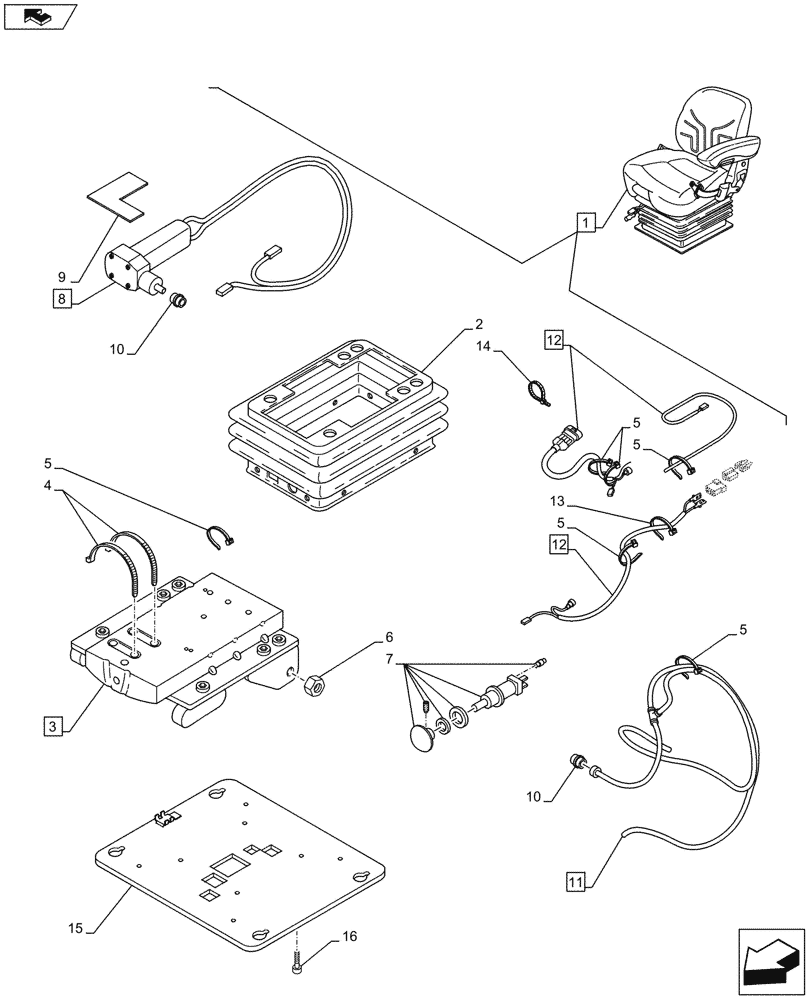

Запчасти Case IH MAXXUM 140 (90.124.AK[03A]) - VAR - 330710 - SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN - BEGIN YR 03-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47488674

DRIVER SEAT

1шт.

2

82035104

BELLOWS

1шт.

3

9971516

MOUNTING PLATE

ASSY, Incl 4 - 6

1шт.

4

84171410

WIRE CLAMP

2шт.

5

87567529

CABLE TIE,200mm L

1шт.

6

82034883

NUT,CL 8.8

2шт.

7

87705191

KIT

1шт.

8

87331939

AIR COMPRESSOR KIT

ASSY, Incl 4, 5, 9, 10 (Qty 2)

1шт.

9

84171558

PLATE

1шт.

10

87331945

FERRULE

4шт.

11

87705194

HOSE KIT

ASSY, Incl 5, 10 (Qty 2)

1шт.

12

82035141

WIRE HARNESS

ASSY, Incl 5

1шт.

13

82035055

CABLE TIE,M4.7 x 204

1шт.

14

84171410

WIRE CLAMP

1шт.

15

82035134

MOUNTING PLATE

1шт.

16

82034896

SCREW,M8 x 1.25 x 1.25mm

4шт.
