(90.124.AH[03A]) - VAR - 330710 - SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN - BEGIN YR 03-OCT-2014

Запчасти Case IH MAXXUM 140 (90.124.AH[03A]) - VAR - 330710 - SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN - BEGIN YR 03-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

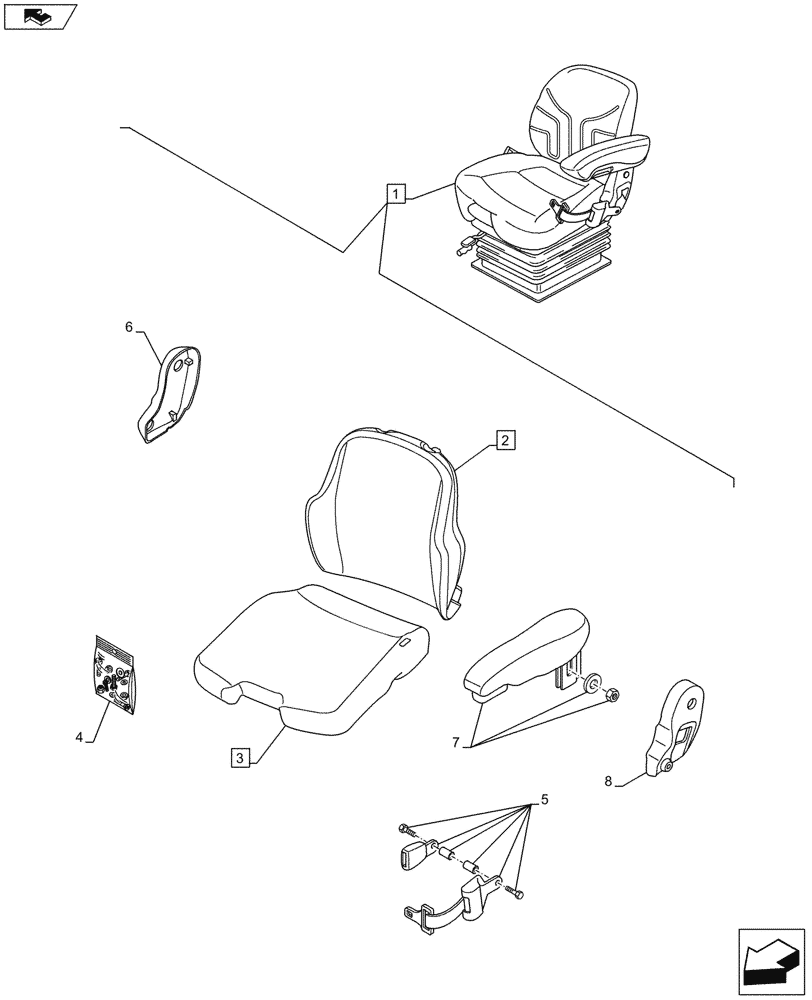

Схема запчастей Case IH MAXXUM 140 - (90.124.AH[03A]) - VAR - 330710 - SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN - BEGIN YR 03-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
7
3
4
8
6
2
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488674

DRIVER SEAT

1шт.

2

84172430

SEAT BACK

ASSY, Incl 4

1шт.

3

84172428

SEAT CUSHION

ASSY, Incl 4

1шт.

4

84191200

SET OF PARTS

SMALL PARTS CUSHION

1шт.

5

82034981

SAFETY BELT ,50.8mm W x 1280mm L

1шт.

6

82023115

COVER

1шт.

7

82034988

ARMREST

1шт.

8

71491405

COVER

1шт.

Выбрано товаров: 8
