(90.124.AH[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH MAXXUM 140 (90.124.AH[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

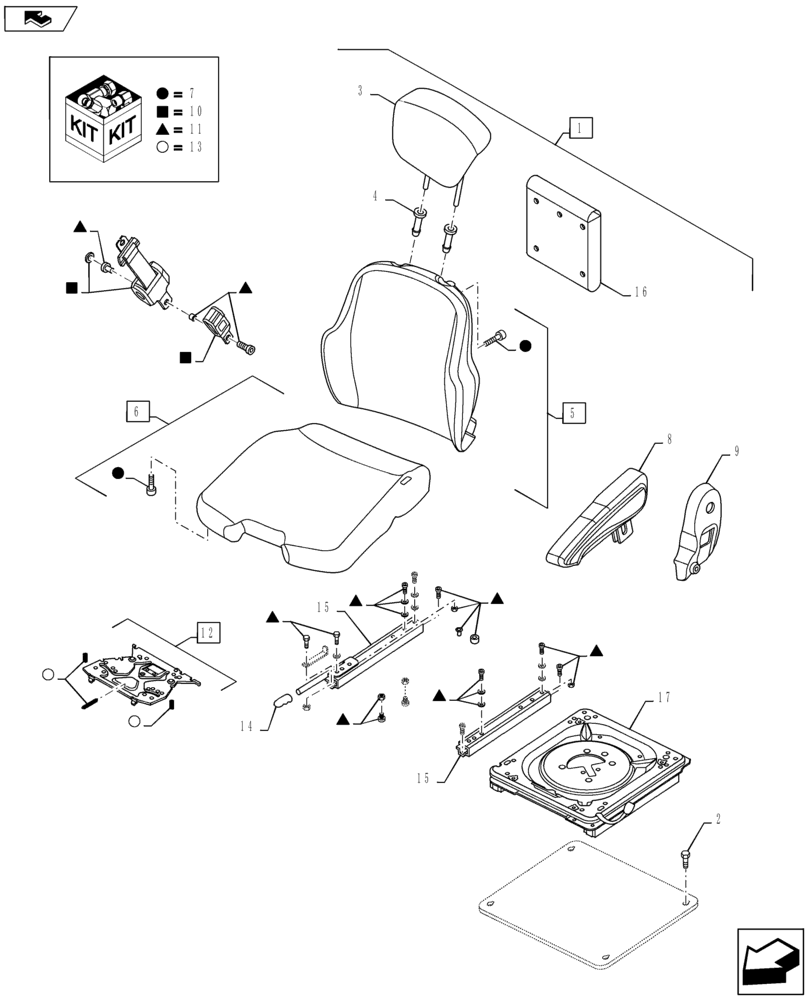

Схема запчастей Case IH MAXXUM 140 - (90.124.AH[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
11
7
1
11
7
11
7
7
12
5
13
10
9
15
11
10
11
4
10
13
11
15
2
11
home
11
17
6
16
14
10
13
13
3
11
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84171102

SEAT

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191100

SEAT HEADREST

1шт.

4

84191112

GUIDE

1шт.

5

84191204

BACKREST

Incl 7

1шт.

6

84191205

SEAT CUSHION

Incl 7

1шт.

7

84191200

SET OF PARTS

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

1шт.

11

84191194

MOUNTING PARTS

for 10, 14, and 17

1шт.

12

84191141

PLATE

Incl 13

1шт.

13

84191201

SET OF PARTS

1шт.

14

9971715

HANDLE

1шт.

15

84191191

REPAIR KIT

1шт.

16

47124555

BRIEF CASE

1шт.

17

84191192

SEAT SUPPORT

Swivel

1шт.
