(90.124.AF[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH MAXXUM 140 (90.124.AF[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

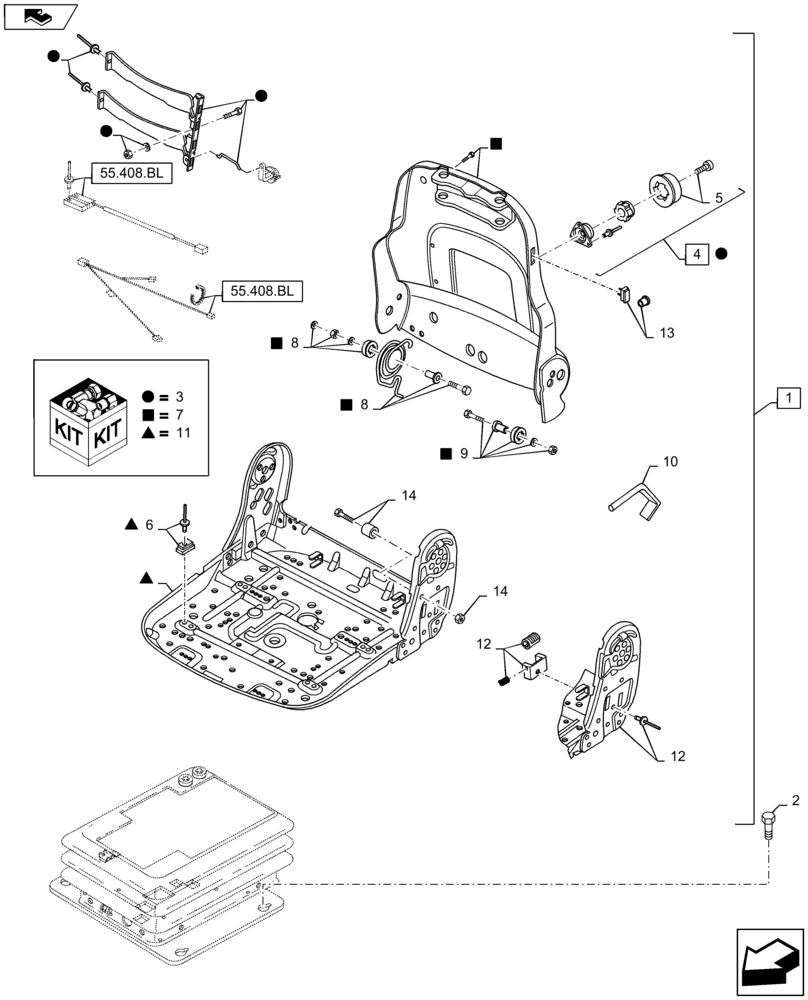

Схема запчастей Case IH MAXXUM 140 - (90.124.AF[01]) - VAR - 330709 - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
14
11
3
11
3
7
3
7
9
10
55.408.bl
14
7
5
8
8
7
12
7
home
3
3
11
3
4
12
1
7
55.408.bl
2
6
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84171102

SEAT

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

345767A1

SUPPORT

Incl 4

1шт.

4

84191199

ACTUATOR

Incl 5

1шт.

5

82034964

HANDLE

1шт.

6

84191178

SET OF PARTS

1шт.

7

84191121

BACKREST

1шт.

8

84191131

SET OF PARTS

1шт.

9

84191196

SET OF PARTS

1шт.

10

82034960

LEVER

1шт.

11

84191188

REPAIR KIT

1шт.

12

82034946

SERVICE KIT

1шт.

13

84223027

SWITCH

1шт.

14

NSS

NOT SOLD SEPARAT

Hardware, Incl in 1

1шт.
