(90.120.BC[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - END YR 02-OCT-2014

Запчасти Case IH MAXXUM 140 (90.120.BC[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - END YR 02-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS

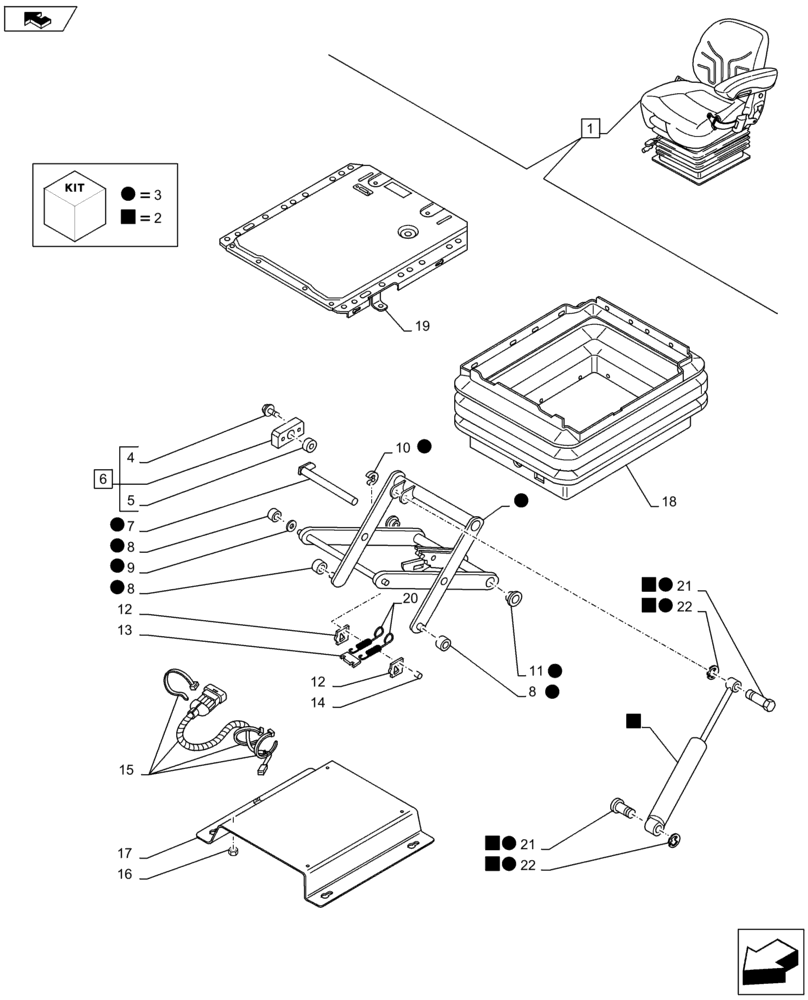

Схема запчастей Case IH MAXXUM 140 - (90.120.BC[01]) - DELUXE SEAT WITH MECHANICAL SUSPENSION, BELT AND SWITCH - BREAKDOWN - END YR 02-OCT-2014 (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
12
11
3
3
20
2
19
9
5
2
3
2
10
3
2
3
3
3
3
4
3
17
22
3
22
12
3
8
21
2
21
13
8
1
7
2
6
16
8
15
3
3
14
home
2
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84122199

DRIVER SEAT

1шт.

2

82035109

SHOCK ABSORBER

ASSY, Incl 21 - 22

1шт.

3

82035148

KIT

ASSY, Incl 7 - 11, 21 - 22

1шт.

4

85817444

SCREW,M6 x 16mm

4шт.

5

85817445

BUSHING

2шт.

6

86024670

KIT

ASSY, Incl 4 - 5

1шт.

7

82035146

BOLT

1шт.

8

9958784

SPACER

4шт.

9

85817442

BUSHING

2шт.

10

82035127

WASHER,M9

1шт.

11

82035048

BUSHING

2шт.

12

82035069

PLATE

2шт.

13

9958782

PLATE

1шт.

14

9958793

BOLT

1шт.

15

82035143

ELECTRIC CABLE

1шт.

16

47124497

NUT,M8

4шт.

17

82035137

CONSOLE

1шт.

18

85817428

BELLOWS

1шт.

19

82035125

SUSPENSION

1шт.

20

84171414

TENSION SPRING

2шт.

21

9959588

BOLT,M8 x 22mm

2шт.

22

9972178

CIRCLIP,M5

2шт.
