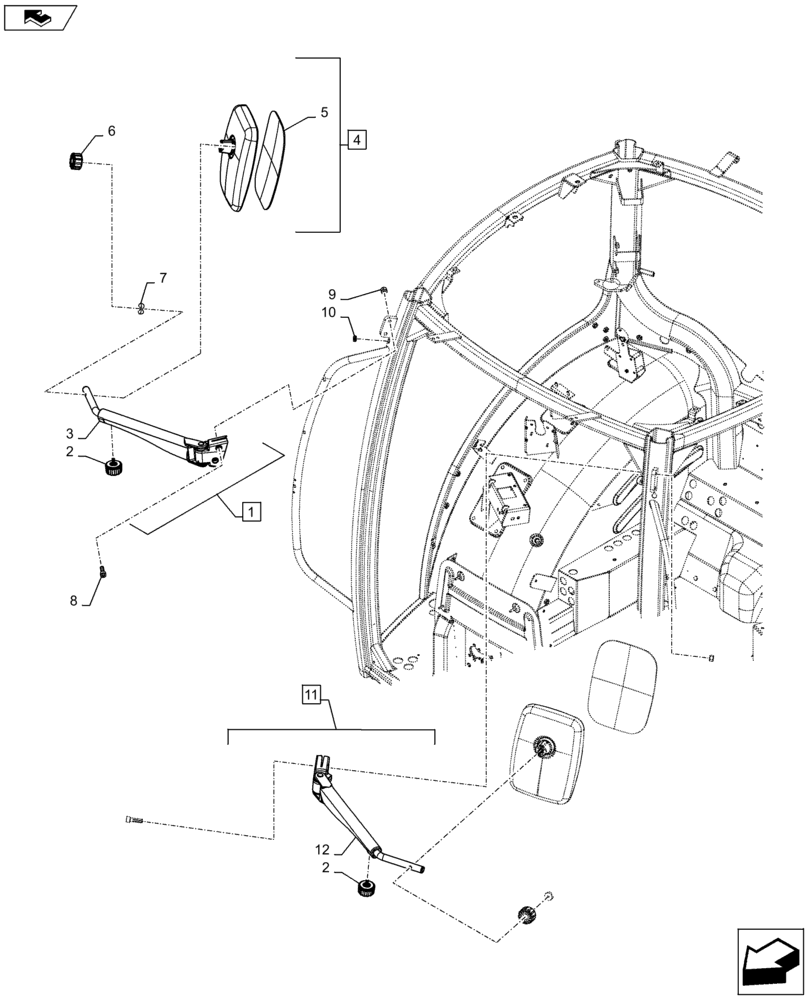

Запчасти Case IH MAXXUM 140 (90.118.BM[03]) - VAR - 330825 - TELESCOPIC REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84398575

MIRROR ARM

RH, Incl 2, 3

1шт.

2

87365131

KNOB

2шт.

3

NSS

NOT SOLD SEPARAT

Arm, Incl in 1

1шт.

4

87339177

MIRROR ASSY.

Incl 5, 6

2шт.

5

82035218

MIRROR,300mm x 200mm

2шт.

6

82016257

KNOB

2шт.

7

82035908

WASHER

2шт.

8

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

10

82039492

GROMMET,6mm ID x 20mm OD, Rubber

2шт.

11

87314381

MIRROR ARM

LH, Incl 2, 12

1шт.

12

NSS

NOT SOLD SEPARAT

Arm, Incl in 11

1шт.
