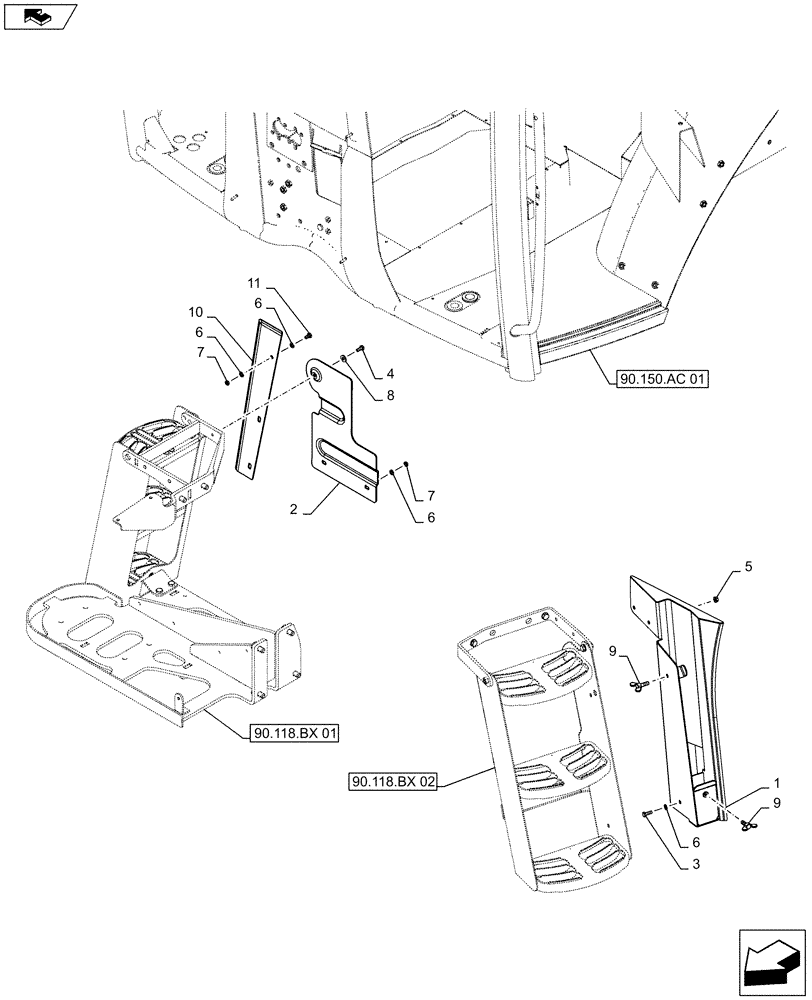

Запчасти Case IH MAXXUM 140 (90.116.AG[04]) - VAR - 338204, 743707, 338206, 743708 - WIDE REAR FENDERS - COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84557252

GUARD

LH

1шт.

2

84557260

GUARD

RH, Serial Range: -ZDBD12542

1шт.

2

47404304

GUARD

RH, Start Serial: ZDBD12543

1шт.

3

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

2шт.

4

16043480

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

7

14047317

NUT,M8 x 1.25

3шт.

8

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

1шт.

9

84492240

SCREW,Wing, M10 x 30mm

2шт.

10

84557263

GUARD

RH, Serial Range: -ZDBD12542

1шт.

10

47404300

GUARD

RH, Start Serial: ZDBD12543

1шт.

11

16043280

BOLT,Hex, M8 x 1.25 x 16mm, Full Thd

2шт.
