(90.116.AC[08]) - VAR - 338122, 338201 - STANDARD REAR FENDERS WITH EXTENSIONS - MUDGUARD, RH

Запчасти Case IH MAXXUM 140 (90.116.AC[08]) - VAR - 338122, 338201 - STANDARD REAR FENDERS WITH EXTENSIONS - MUDGUARD, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

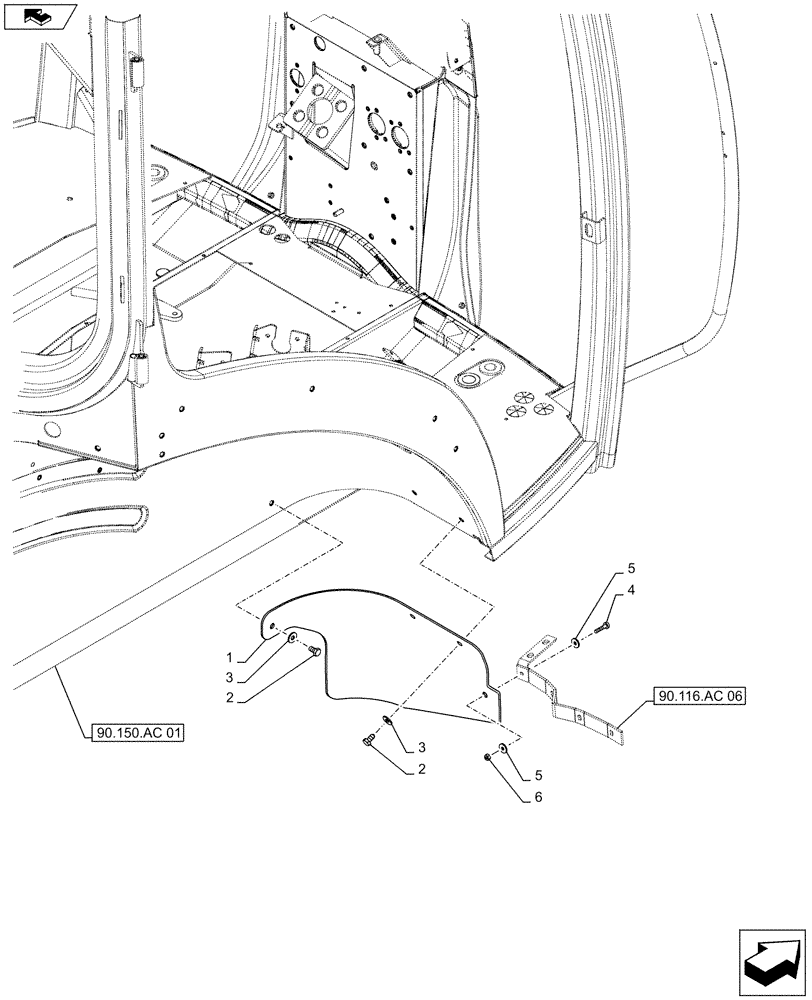

Схема запчастей Case IH MAXXUM 140 - (90.116.AC[08]) - VAR - 338122, 338201 - STANDARD REAR FENDERS WITH EXTENSIONS - MUDGUARD, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
5
90.150.ac 01
2
1
4
3
2
90.116.ac 06
5
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87310916

MUDFLAP

RH

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

3

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

4

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

1шт.

5

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

6

9706755

NUT,M6, Cl 8

1шт.
