Запчасти Case IH MAXXUM 140 (90.108.AA[05]) - CONTROL LOGOGRAM DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

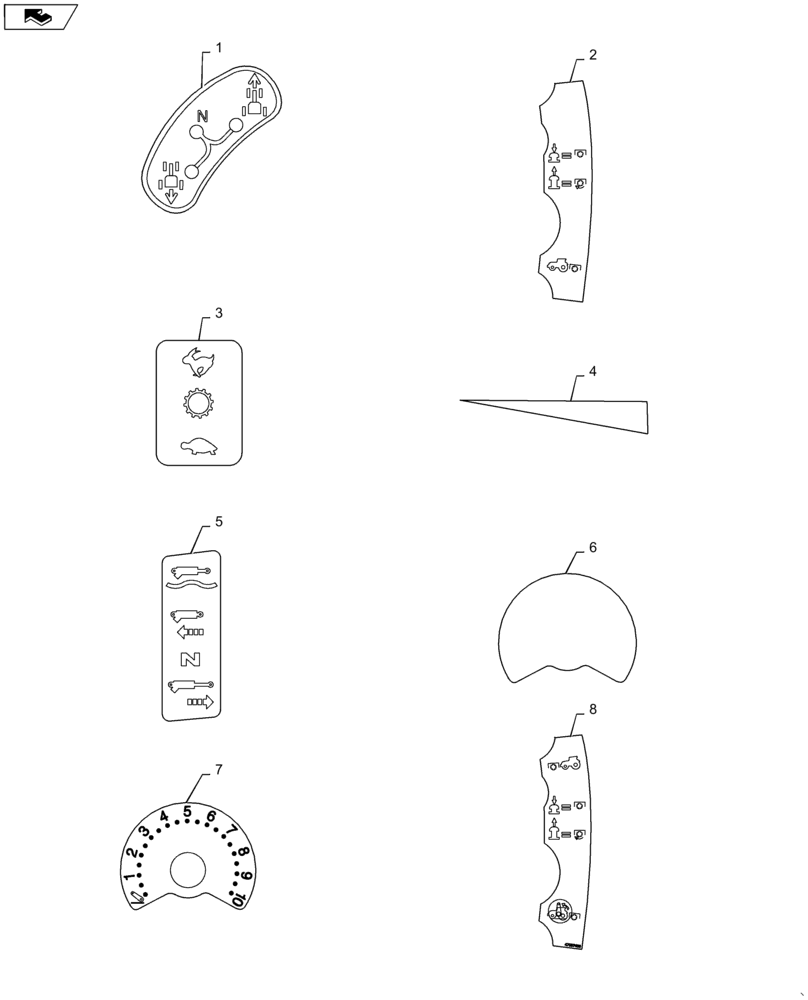

Схема запчастей Case IH MAXXUM 140 - (90.108.AA[05]) - CONTROL LOGOGRAM DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
7
home
6
4
2
8
5

Артикул

Название

Примечание

Количество

1

84178421

DECAL

1шт.

Valid with Standard Equipment or Var. 335245 / 743673, 35 KPH for Japan (16x16), or Var. 330291 / 743764, 40kph Economy (17x16), or Var. 330247 / 743766, 50kph (17x16)

1шт.

2

87556489

DECAL

Control PTO

1шт.

Valid with Standard Equipment or Var. 336811, Less front linkage & PTO for suspended axle, or Var.336831-337831 / 743699, Integrated FHPL

1шт.

3

87556506

DECAL

Gearshift

1шт.

Valid with Standard Equipment or Transmission 16x16/17x16 SPS, Var. 330283

1шт.

4

87556491

DECAL

Throttle

1шт.

Valid with Standard Equipment or Transmission 16x16/17x16 SPS, Var. 330283

1шт.

5

87556505

DECAL

Remote Valve

1шт.

Valid with Standard Equipment or Var. 331844-333844-335844 / 743741, 3 Mechanical Rear Remote Valves (1NC +2C), or Var. 331845-333845-334845 / 743685, 4 Mechanical Rear Remote valves (2NC+2C)

1шт.

6

87498617

COVER PLATE

1шт.

Valid with Standard Equipment, Less front linkage & PTO for standard front axle, or Var. 336811, Less front linkage & PTO for suspended axle

1шт.

7

87498611

DECAL

Foil Heightlimiter FHPL

1шт.

Integrated FHPL, Var. 333648-334648-335648 / 743700; Var. 336831-337831 / 743699

1шт.

8

87556490

DECAL

Control PTO (FRT + RR)

1шт.

Integrated FHPL with PTO (6 spline), Var. 333648-334648-335648 / 743700

1шт.

Выбрано товаров: 16
