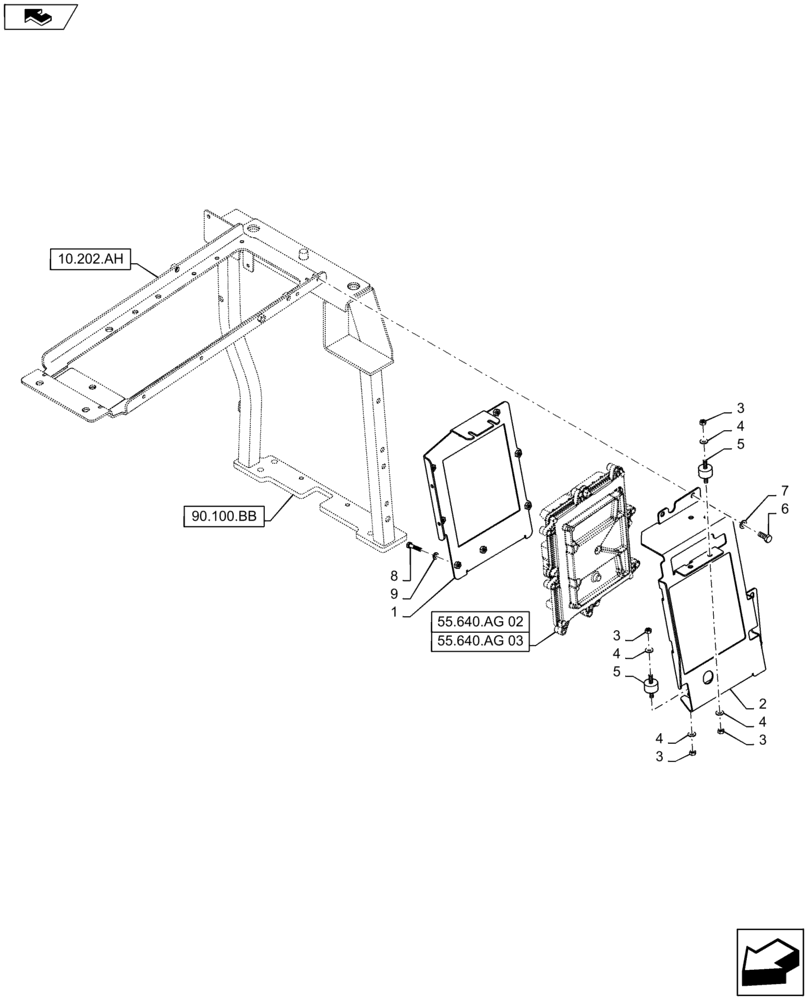

Запчасти Case IH MAXXUM 140 (90.102.BU) - VAR - 330643 + STD - ENGINE CONTROL MODULE MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84467098

SUPPORT

1шт.

2

84467104

SUPPORT

1шт.

3

336266

NUT,M6, Cl 8

8шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

5

84341086

DAMPER,M6 x 51mm, 25mm OD

4шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

8шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.
