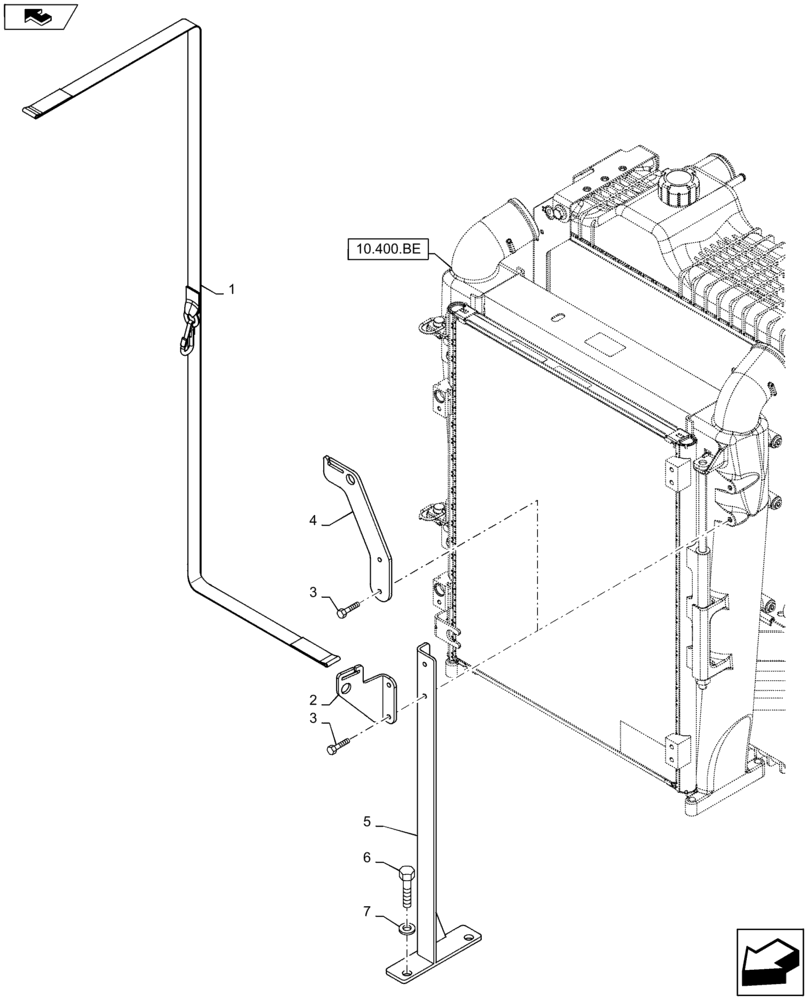

Запчасти Case IH MAXXUM 140 (90.102.AU[03]) - VAR - 330515, 330520, 743816, 331515, 331520, 743729 + STD - HOOD - SECURING STRAP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84284508

SECURING STRAP

1шт.

2

87566912

SUPPORT

1шт.

For Maxxum 125, 140

1шт.

Only with Standard Equipment

1шт.

3

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

4

82036436

SUPPORT

1шт.

For Maxxum 110, 115, 120, 130

1шт.

Only with Standard Equipment

1шт.

5

87372517

SUPPORT

1шт.

For Maxxum 110, 120, 130 Made in Austria Only

1шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

For Maxxum 110, 120, 130 Made in Austria Only

1шт.

7

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

For Maxxum 110, 120, 130 Made in Austria Only

1шт.
