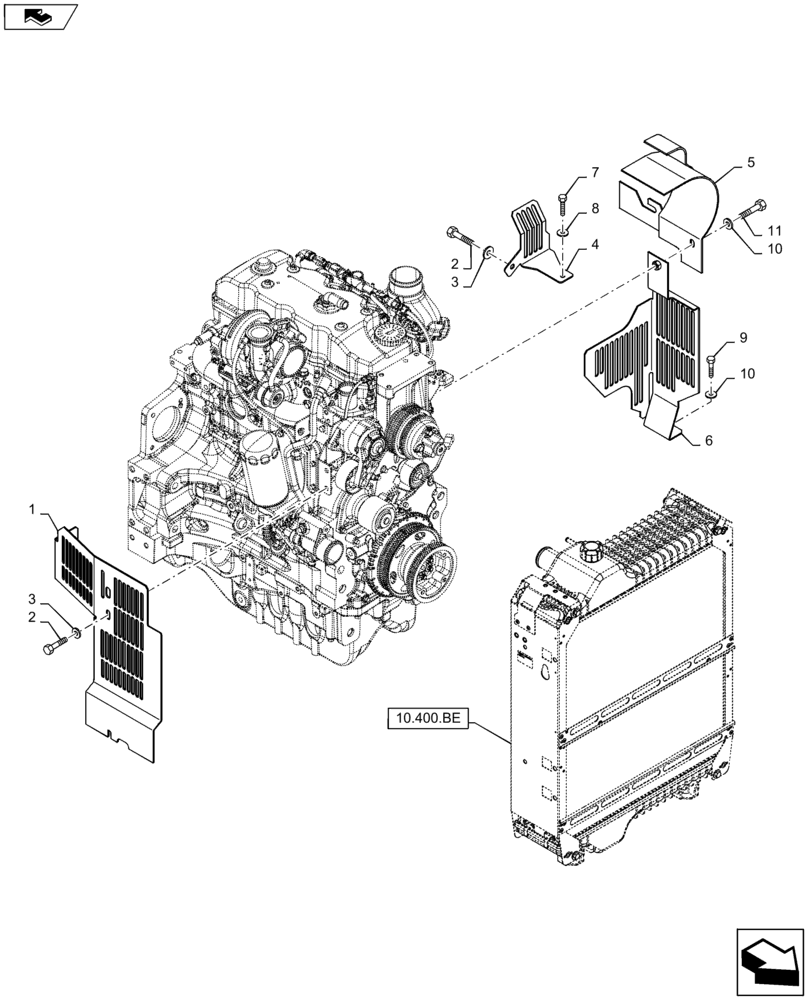

Запчасти Case IH MAXXUM 140 (90.102.AG[02]) - VAR - 332727, 332737, 332739 - ENGINE GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87590016

GUARD

Alternator

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

4

87541648

GUARD

Engine

1шт.

5

84273493

GUARD

A/C. Compressor

1шт.

6

84547843

SHIELD

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

7шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
