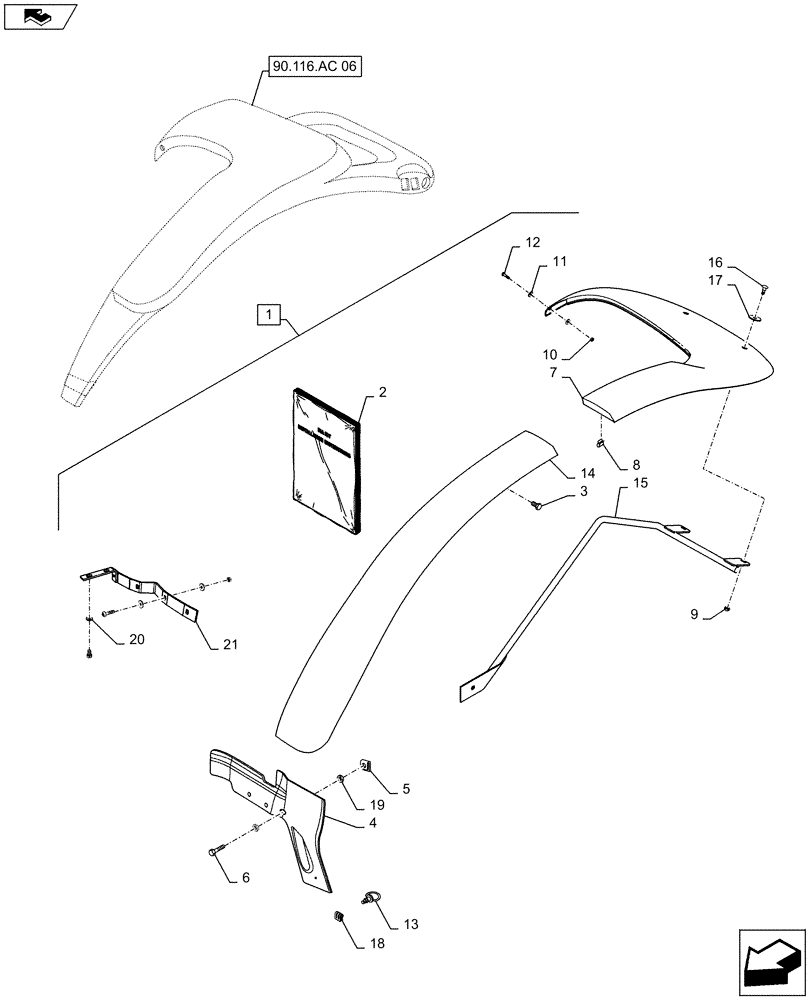

Запчасти Case IH MAXXUM 140 (88.100.90[07]) - DIA KIT - REAR FENDER EXTENSIONS FOR NARROW FENDERS (88) - ACCESSORIES

1

710869064

DIA KIT, TRACTOR

Rear Extensions for Narrow Fenders, Incl 2 - 23

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84142711

INSTRUCTION

1шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

4

82034575

GUARD

RH

1шт.

4

82034574

GUARD

LH

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

6

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

87327426

FENDER EXTENSION

RH

1шт.

7

87327425

FENDER EXTENSION

LH

1шт.

8

82010838

SPRING CLIP,0.5mm Thk

28шт.

9

16104511

NUT,M8 x 1.25, Cl 8.8

4шт.

10

15896211

NUT,M6, Cl 8

10шт.

11

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

14шт.

12

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

9шт.

13

87357874

LOCK PIN

1шт.

14

82036146

FENDER EXTENSION

RH

1шт.

14

82036148

FENDER EXTENSION

LH

1шт.

15

82035422

SUPPORT

RH

1шт.

15

82035424

SUPPORT

LH

1шт.

16

83990985

BOLT,M8 x 1.25 x 25mm

4шт.

17

81872600

WASHER,0.5" ID x 1.62" OD x 0.08" Thk

4шт.

18

82004582

CLIP,Square, 25mm

1шт.

19

12647104

WASHER,8.15mm ID x 20mm OD x 3mm Thk

12шт.

20

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

21

82037057

SUPPORT

LH

1шт.

21

82037055

SUPPORT

RH

1шт.
