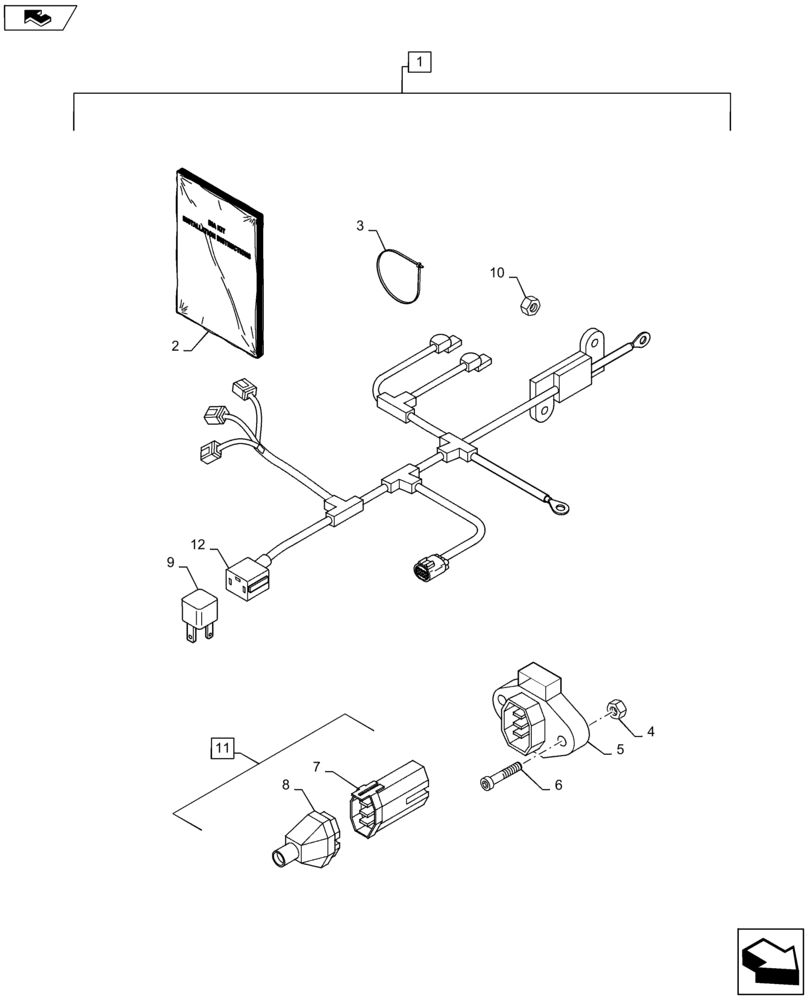

Запчасти Case IH MAXXUM 140 (88.100.55[08]) - DIA KIT - FRONT IMPLEMENT SOCKET (88) - ACCESSORIES

1

719774034

DIA KIT, TRACTOR

30A Implement Socket. Front of Cab, Incl 2 - 12

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84145773

INSTRUCTION

1шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

1шт.

4

82031857

RIVET

2шт.

5

82029732

POWER SOCKET

1шт.

6

84187831

SCREW,Torx Pan Hd, M4 x 25mm, Cl 4.8

2шт.

7

82033061

ELEC CONNECTOR

1шт.

8

12336344

CABLE TERMINAL

1шт.

9

82017871

RELAY,12V, 20A

1шт.

10

353308

NUT,M6 x 1.0, Cl 8

1шт.

11

87301678

POWER SOCKET

Incl 7, 8

1шт.

12

87596890

WIRE HARNESS

30A Front Implement Socket

1шт.
