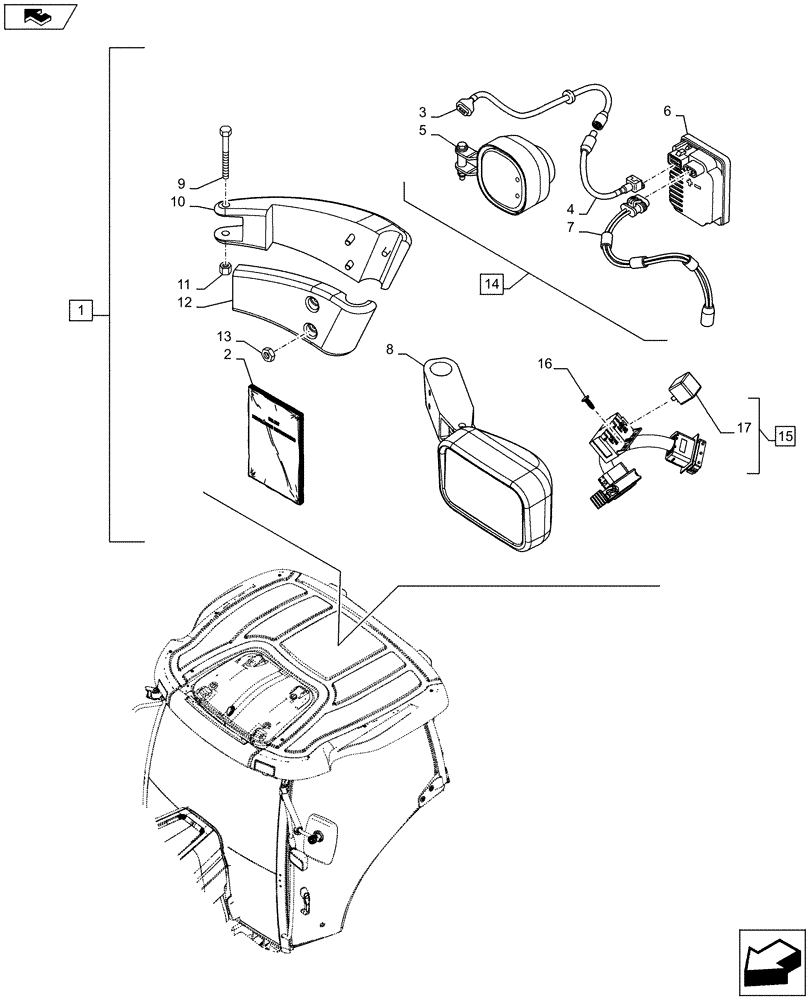

Запчасти Case IH MAXXUM 140 (88.100.55[04]) - DIA KIT - HID INTENSITY WORKLAMPS FOR FRONT OR REAR CAB MOUNTING (88) - ACCESSORIES

1

718658014

DIA KIT, TRACTOR

2 HID Worklight Kit for Front Grabrail or Rear High Cab Mounting, Incl 2 - 14

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84138408

LITER. SERV MISCELL

1шт.

3

82039485

ELECTRIC CABLE

2шт.

4

82039486

ELECTRIC CABLE

2шт.

5

82039483

WORKING LIGHT

2шт.

6

82039484

TRANSFORMER

2шт.

7

82039487

ELECTRIC CABLE

2шт.

8

87313315

WORK LAMP,Halogen, 12V, 55W, Clear

On C Pillar

1шт.

9

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

10

87644971

BRACKET

RH

1шт.

11

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

12

87644972

BRACKET

RH

1шт.

13

12574211

NUT,M6 x 1, Cl 8

2шт.

14

82039106

WORKING LIGHT

Incl 3 - 7

1шт.

15

47474059

WIRE HARNESS

Link lead worklamp, Incl 17

1шт.

16

47406284

PLASTIC PLUG

2шт.

17

82013124

RELAY,12V, 30A

30 Amp

2шт.
