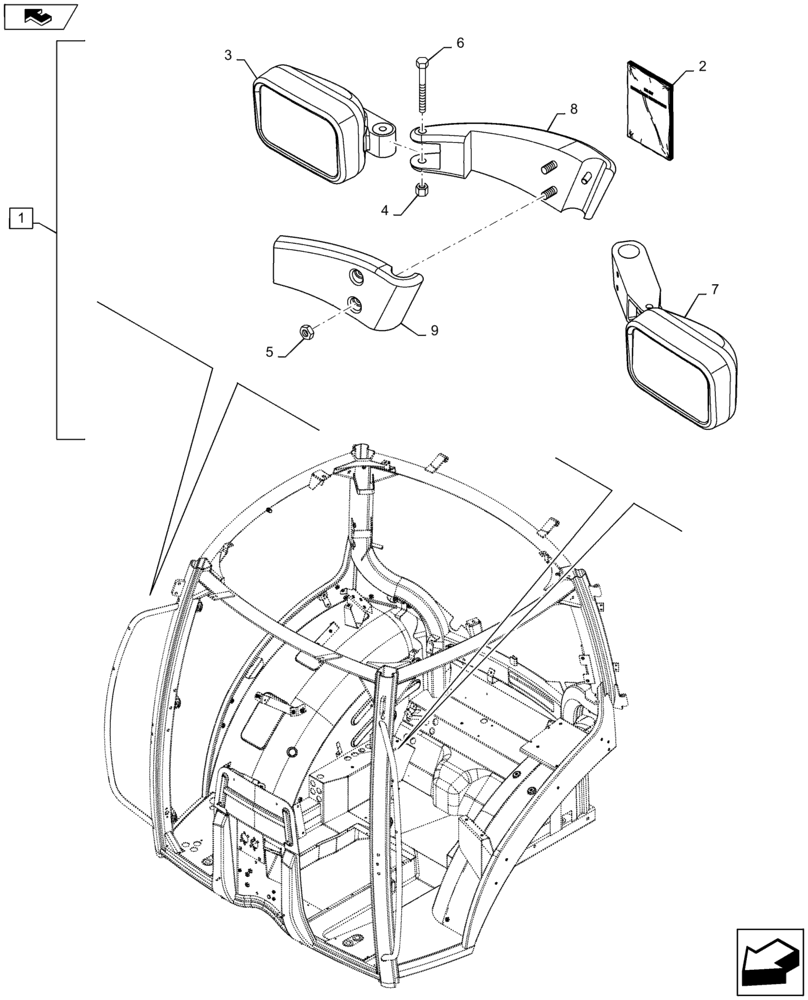

Запчасти Case IH MAXXUM 140 (88.100.55[03]) - DIA KIT - 2 ADDITIONAL WORK LIGHTS FOR GRAB RAIL (88) - ACCESSORIES

1

710768064

DIA KIT, TRACTOR

2 x Additional Worklight For Cab Grabrails, Incl 2 - 9

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84136465

INSTRUCTION

1шт.

3

87536281

WORK LAMP,Halogen, 12V, 55W, Clear

RH

1шт.

4

14048211

NUT,M8 x 1.25, Cl 8

1шт.

5

12574211

NUT,M6 x 1, Cl 8

2шт.

6

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

1шт.

7

87313315

WORK LAMP,Halogen, 12V, 55W, Clear

On "C" Pillar, LH

1шт.

8

87644971

BRACKET

1шт.

9

87644972

BRACKET

1шт.
