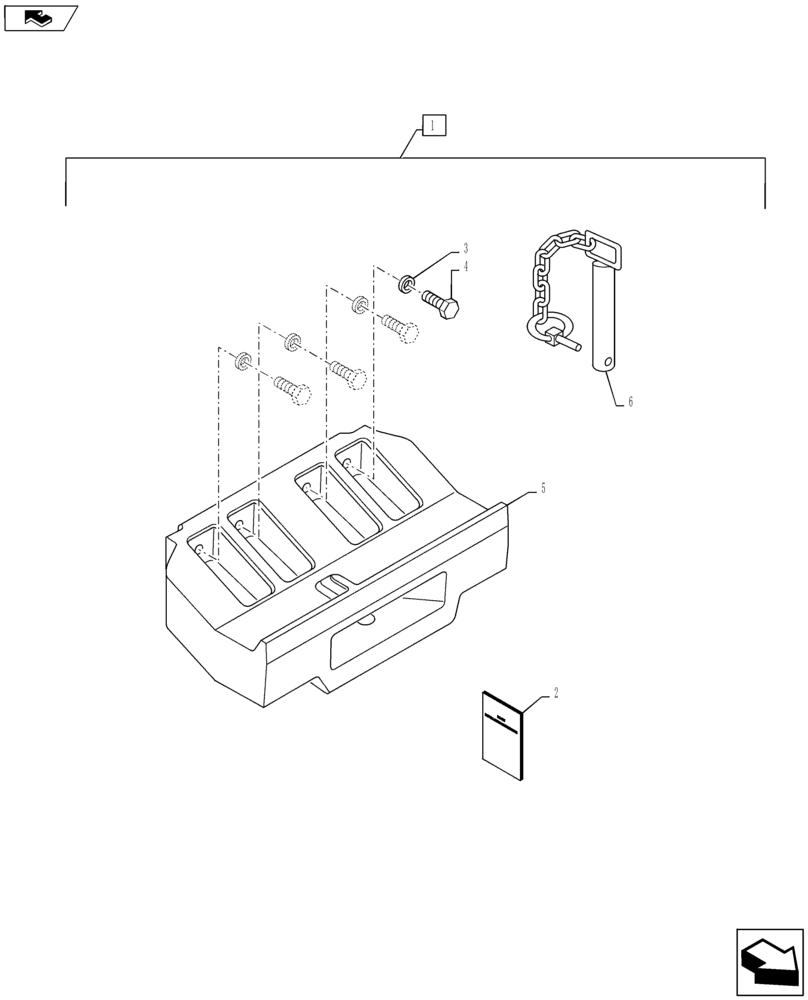

Запчасти Case IH MAXXUM 140 (88.100.37[12]) - DIA KIT - STANDARD STEER CARRIER (88) - ACCESSORIES

1

710023024

DIA KIT, TRACTOR

Standard Steer Carrier, Less Weights and Less Tow Hook, Incl 2 - 6

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84147635

INSTRUCTION

1шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

4

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

6шт.

5

82031499

WEIGHT CARRIER

1шт.

6

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.
