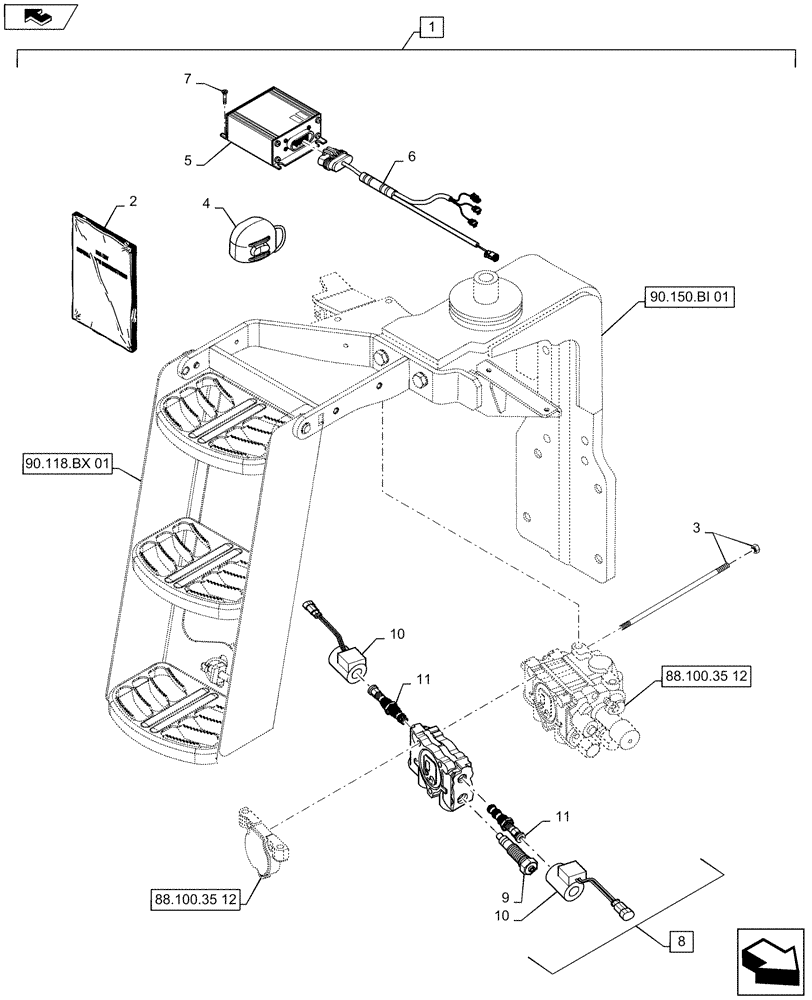

Запчасти Case IH MAXXUM 140 (88.100.35[19]) - DIA KIT - ADDITIONAL 1 SLICE VALVE FOR 2 MECHANICAL MMV - VALVE AND RELATIVE PARTS (88) - ACCESSORIES

1

718918014

DIA KIT, TRACTOR

Mid Mount Valve 2 to 3 Slice for NAR, Mechanical CC, Incl 2 - 11

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

87589273

INSTRUCTION

1шт.

3

86582440

KIT

Threaded Rod and Nut

1шт.

4

82032501

KNOB

1шт.

5

82031402

ECU

Controller Loader Ready

1шт.

6

82037734

WIRE HARNESS

3rd Slice

1шт.

7

15905301

SELF-TAP SCREW,Cross Pan Hd, M6.3 x 16

4шт.

8

86582439

REMOTE CONTROL VALVE

Incl 9 - 11

1шт.

9

86582451

HYD CONNECTOR

1шт.

10

86582450

COIL

2шт.

11

86582449

SOLENOID VALVE

2шт.
