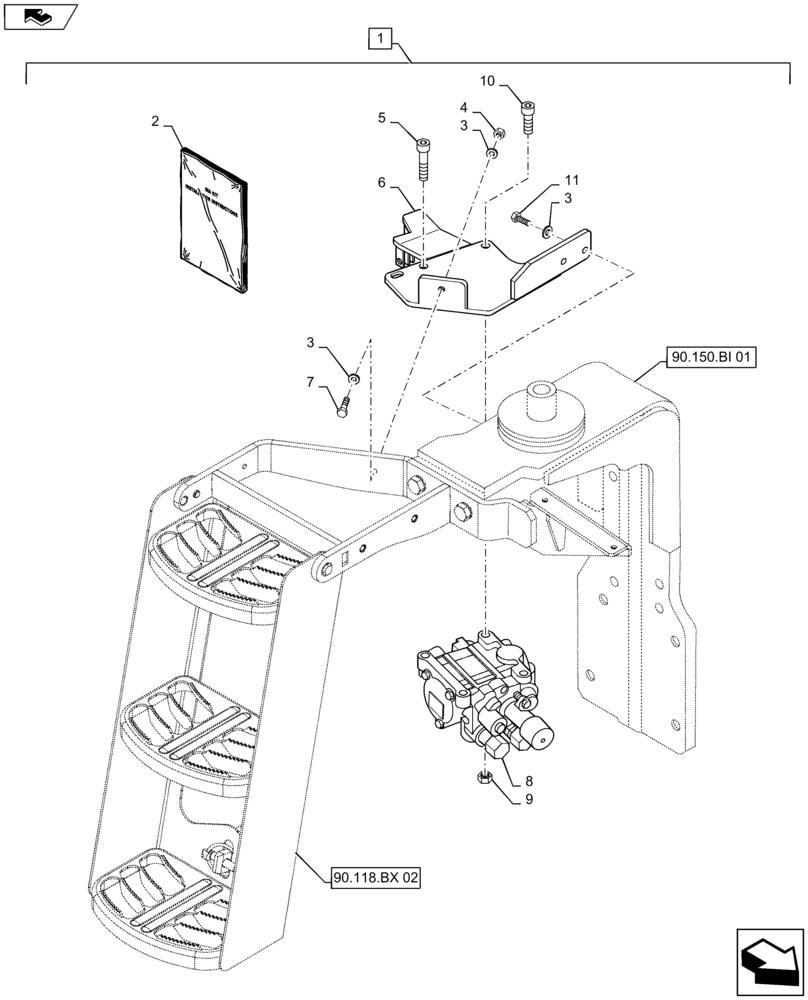

Запчасти Case IH MAXXUM 140 (88.100.35[15]) - DIA KIT - 2 MECHANICAL MID MOUNTED VALVES FOR FD PUMP - DISTRIBUTOR AND SUPPORT (88) - ACCESSORIES

1

710921024

DIA KIT, TRACTOR

2 Mech. Slice Mid-Mount Valves for 80l/min FD Pump (NA), Incl 2 - 11 and Parts on Figures 88.100.35 16 and 17

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

84514818

INSTRUCTION

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16100814

NUT,M8, Cl 8, DAC

4шт.

5

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

6

84476352

BRACKET

1шт.

7

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

47367745

VALVE SECTION

MMV

1шт.

8

47367745R

REMAN-HYD VALVE

Reman MMV Assy

1шт.

8

47367745C

CORE-VALVE HYD

Core Return Number

1шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

10

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

11

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.
