Запчасти Case IH MAXXUM 140 (88.100.35[14]) - DIA KIT - 2 MECHANICAL MID MOUNTED VALVES FOR CCLS - JOYSTICK (88) - ACCESSORIES

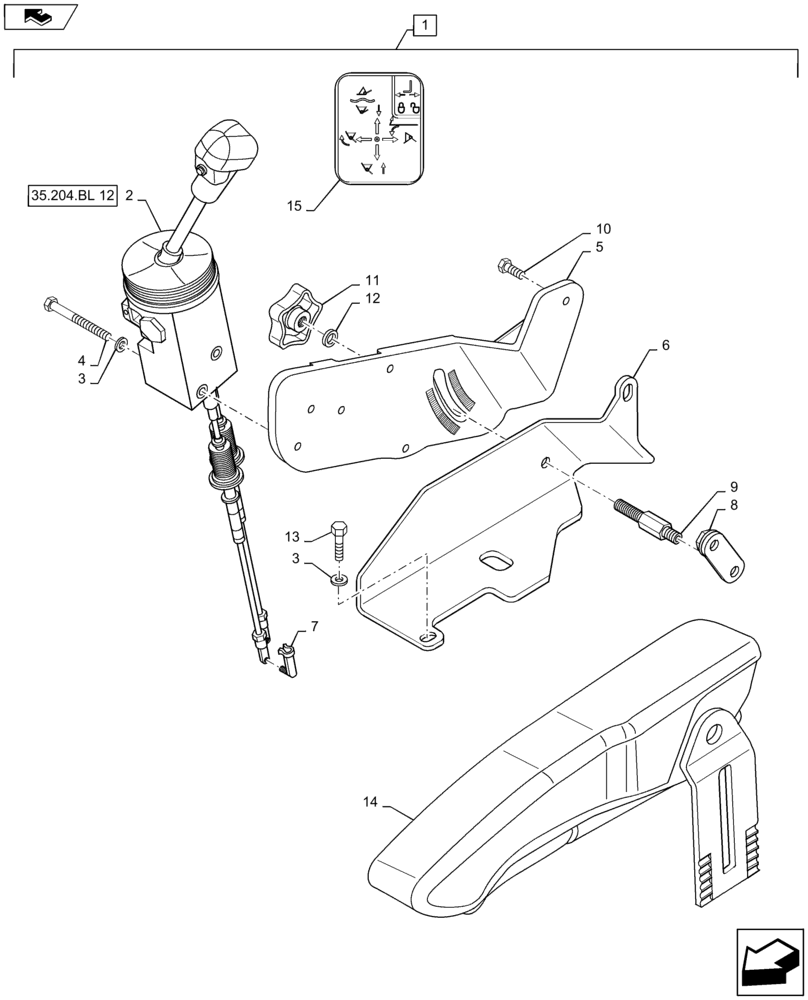

Схема запчастей Case IH MAXXUM 140 - (88.100.35[14]) - DIA KIT - 2 MECHANICAL MID MOUNTED VALVES FOR CCLS - JOYSTICK (88) - ACCESSORIES
12
1
2
11
13
6
15
10
7
9
14
4
8
home
3
3
5
35.204.bl 12

Артикул

Название

Примечание

Количество

1

710919044

DIA KIT, TRACTOR

2 Mech. Slice Mid-Mount Valves for 113l/min CCLS Pump (NA), Incl 2 - 15 and Parts on Figures 88.100.35 12 and 13

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

82038997

JOYSTICK

1шт.

2

82038997R

REMAN-JOYSTICK

Reman for New PN 82038997

1шт.

2

82038997C

CORE-JOYSTICK

Return Number

1шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

16044924

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

5

82037484

SUPPORT

1шт.

6

82026112

BRACKET

1шт.

7

82022510

PIN,4.72mm OD x 15.5mm L

2шт.

8

82035556

BRACKET

1шт.

9

82032760

SPACER,7/16" - 20

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

82032632

KNOB

1шт.

12

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

13

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

82025111

ARMREST

1шт.

15

87487582

DECAL

1шт.

Выбрано товаров: 18
