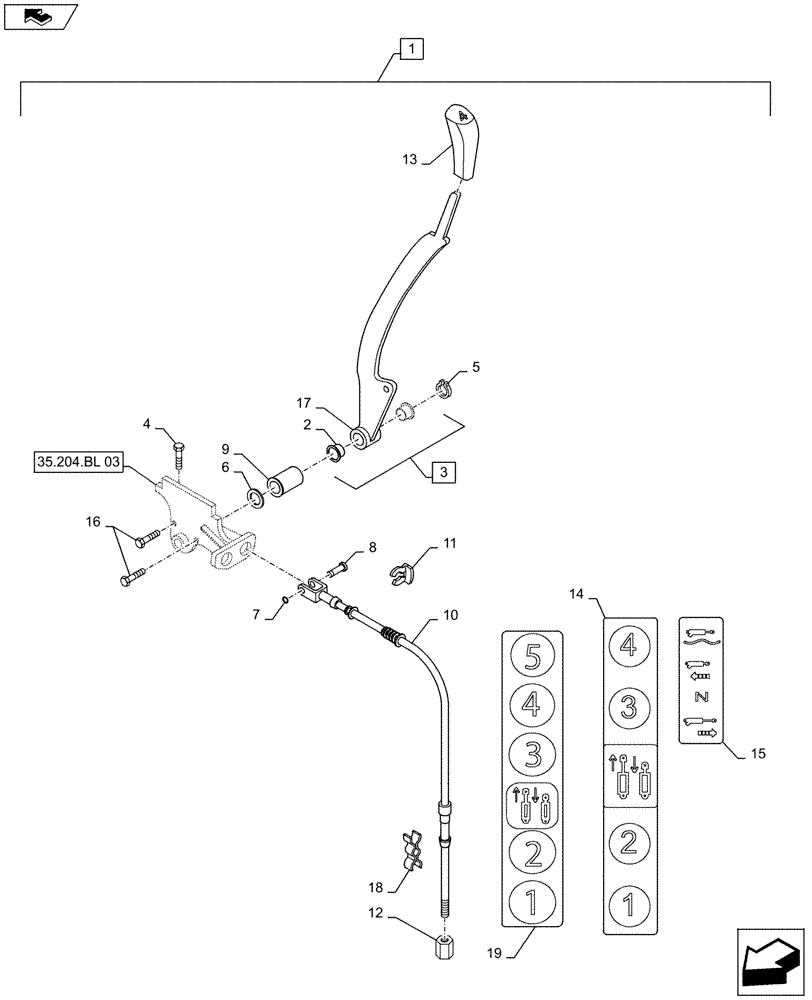

Запчасти Case IH MAXXUM 140 (88.100.35[02]) - DIA KIT - ADDITIONAL MECHANICAL CONFIGURATION REMOTE (3 T0 4) CONTROL LEVER (88) - ACCESSORIES

1

710020024

DIA KIT, TRACTOR

One Additional Remote, Mechanical Configuration, Contains Incl 2 - 18 and Parts on Figure 88.100.35 01

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

82035633

BUSHING

2шт.

3

82036839

LEVER

Incl 2, 17

1шт.

4

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

5

11088171

SNAP RING,M11

1шт.

6

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

7

11087776

CIRCLIP,Ext., M6, BLO

1шт.

8

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

1шт.

9

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

10

87678198

CABLE,1828mm L

1шт.

11

82007837

LOCKING RING

1шт.

12

82012528

NUT,Hex, M6 x 1

1шт.

13

82037913

KNOB

4th Control Lever

1шт.

14

82034262

DECAL

, Serial Range: -C7165

1шт.

15

87556505

DECAL

1шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

17

NSS

NOT SOLD SEPARAT

Lever, Incl in 3

1шт.

18

5191951

CLAMP,3 Hoses

1шт.

19

84535717

DECAL

, Start Serial: D7165

1шт.
