Запчасти Case IH MAXXUM 140 (88.100.35[01]) - DIA KIT - ADDITIONAL MECHANICAL CONFIGURATION REMOTE (3 T0 4) DISTRIBUTOR (88) - ACCESSORIES

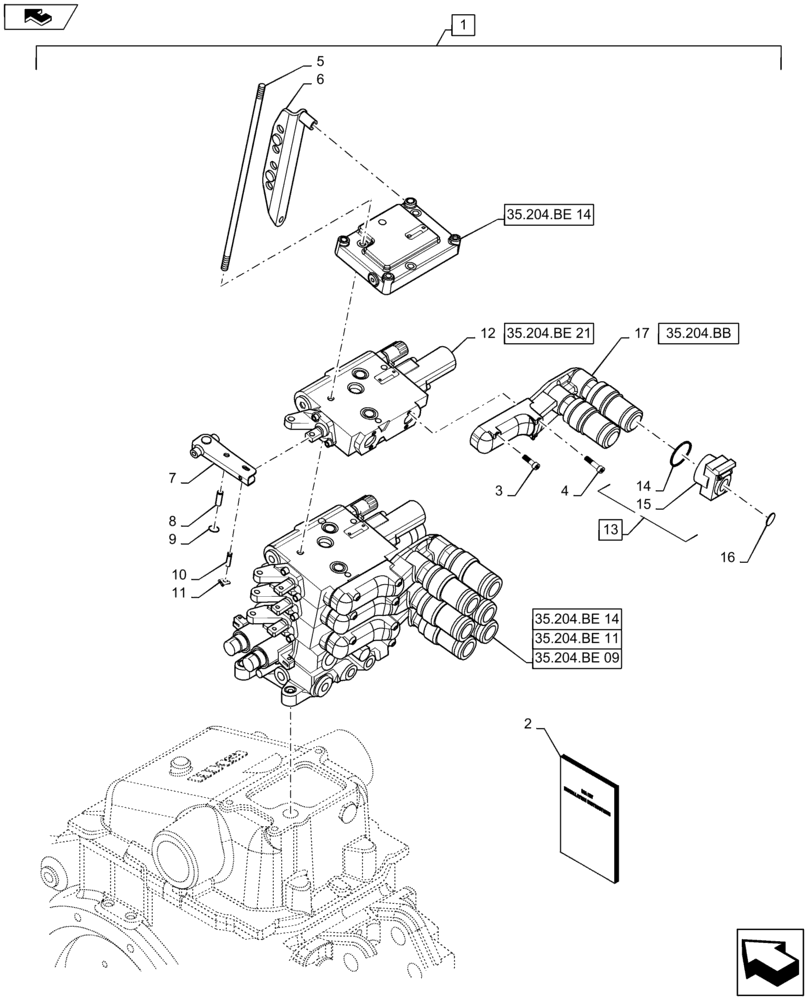

Схема запчастей Case IH MAXXUM 140 - (88.100.35[01]) - DIA KIT - ADDITIONAL MECHANICAL CONFIGURATION REMOTE (3 T0 4) DISTRIBUTOR (88) - ACCESSORIES
14
35.204.be 11
4
35.204.be 14
2
35.204.be 21
10
home
8
15
5
9
11
3
35.204.be 09
13
7
16
1
12
35.204.be 14
35.204.bb
6
17

Артикул

Название

Примечание

Количество

1

710020024

DIA KIT, TRACTOR

One Additional Remote, Mech. Configuration, Contains Ref. 2-17

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figure 88.100.35 02

1шт.

2

84240780

INSTRUCTION

1шт.

3

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

4

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

5

47129476

THREADED TIE-ROD,M8

3шт.

6

87358965

STOP

1шт.

7

87358094

LEVER

1шт.

8

5193177

PIN,6mm OD x 29.48mm L

1шт.

9

11063971

SPRING CLIP,M6

2шт.

10

5113008

PIN,8mm OD x 26mm L

1шт.

11

11065676

SNAP RING,M8, Ext

2шт.

12

87546169

CONTROL VALVE

1шт.

12

87546169R

REMAN-HYD VALVE

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 All EP EFFICIENT POWER TRACTOR

1шт.

12

87546169C

CORE-VALVE HYD

Return Number

1шт.

13

84293793

DUST CAP

Incl 14, 15

2шт.

14

14454580

O-RING,34.65mm ID x 1.78mm

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Incl in 13

2шт.

16

82029895

DISC,20mm D, Black

2шт.

17

87381965

QUICK MALE COUPLING

1шт.

Выбрано товаров: 21
