Запчасти Case IH MAXXUM 140 (88.100.31[01]) - DIA KIT - FRONT POWER TAKE OFF - 21 SPLINE SHAFT CONVERSION (88) - ACCESSORIES

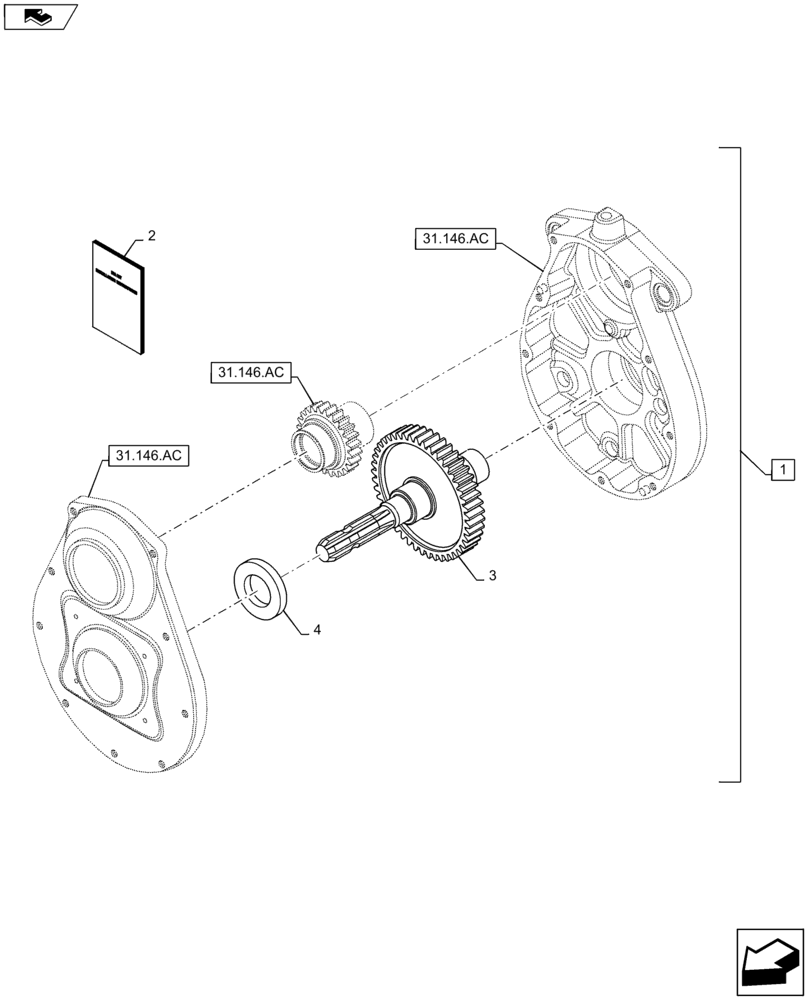

Схема запчастей Case IH MAXXUM 140 - (88.100.31[01]) - DIA KIT - FRONT POWER TAKE OFF - 21 SPLINE SHAFT CONVERSION (88) - ACCESSORIES
31.146.ac
home
4
2
31.146.ac
1
3
31.146.ac

Артикул

Название

Примечание

Количество

1

719793014

DIA KIT, TRACTOR

Front PTO, 21 Spline Shaft Conversion, Incl 2 - 4

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

87747165

INSTRUCTION

1шт.

3

5197577

DRIVEN GEAR

1шт.

4

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

1шт.

Выбрано товаров: 5
