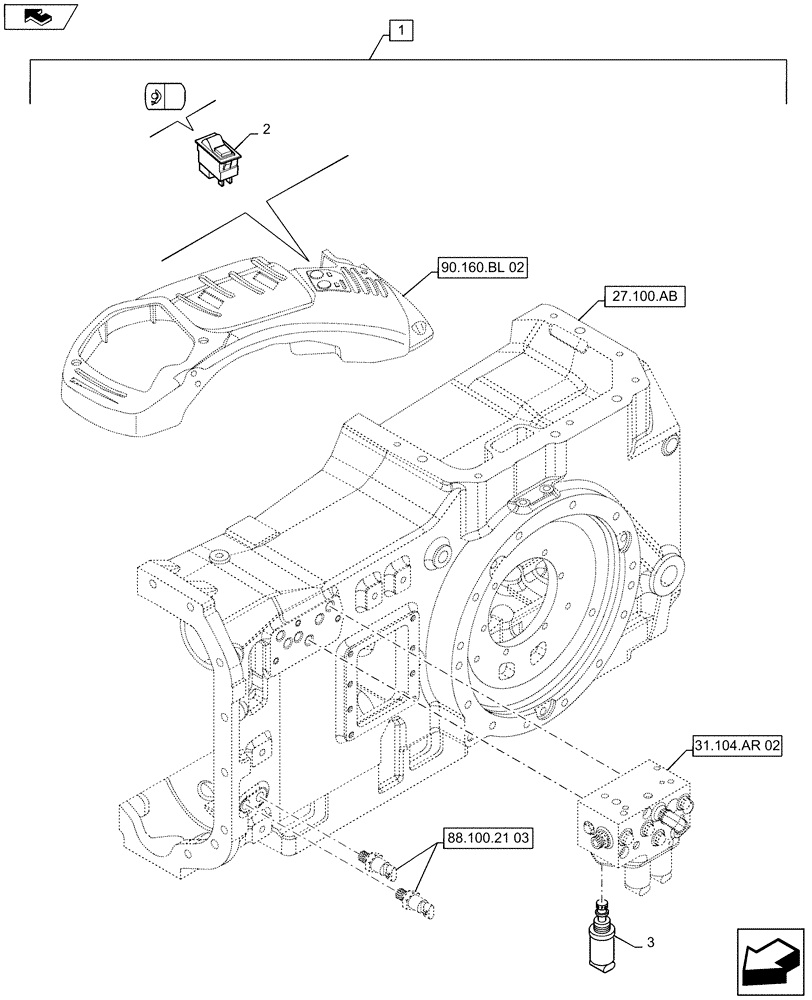

Запчасти Case IH MAXXUM 140 (88.100.21[05]) - DIA KIT - CREEPER FOR TRANSMISSION 24X24/16X16 - ELECTRICAL SYSTEM (88) - ACCESSORIES

1

718100014

DIA KIT, TRACTOR

Creeper Speed for 24x24 Hi-Lo and 16x16 SPS Incl 2 - 6

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figures 88.100.21 01 - 88.100.21 04

1шт.

2

82022761

SWITCH ASSY

1шт.

3

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

4

87314525

WIRE HARNESS

Creeper, Not Illustrated

1шт.

5

87316142

CONDUIT

Not Illustrated

1шт.

6

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

Not Illustrated

15шт.
