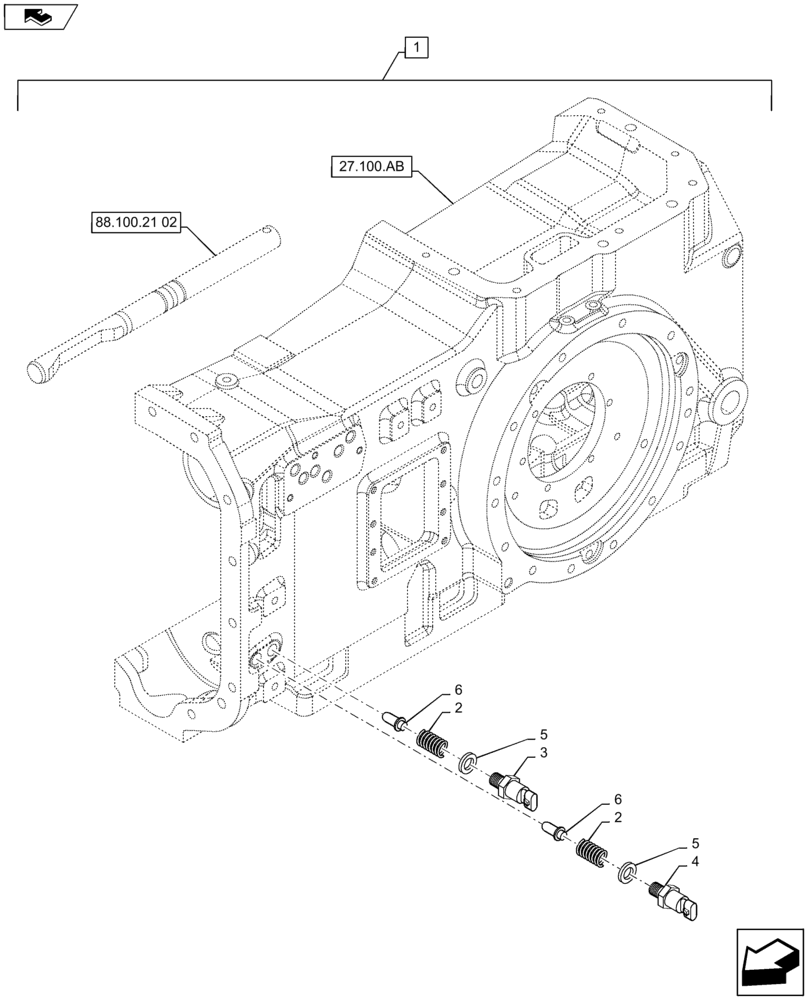

Запчасти Case IH MAXXUM 140 (88.100.21[03]) - DIA KIT - CREEPER FOR TRANSMISSION 24X24/16X16 - TEMPERATURE SWITCH (88) - ACCESSORIES

1

718100014

DIA KIT, TRACTOR

Creeper Speed for 24x24 Hi-Lo and 16x16 SPS, Incl 2 - 6

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

Also Incl Parts on Figures 88.100.21 01, 88.100.21 02, 88.100.21 04 and 88.100.21 05

1шт.

2

81878966

SPRING,Cylindrical, 11mm OD x 17mm L

2шт.

3

47132956

SENSOR

Yellow, Full Disengaged Creeper

1шт.

4

47132957

SENSOR

Red, Full Disengaged Creeper

1шт.

5

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

6

47124364

PIN

2шт.
