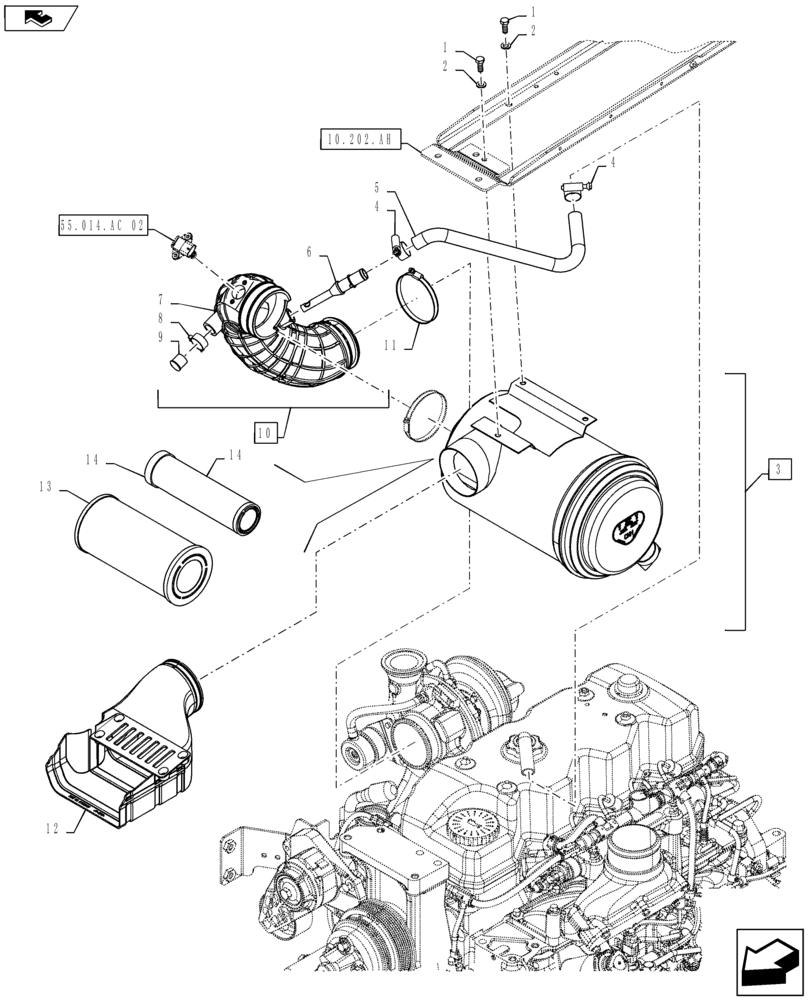

Запчасти Case IH MAXXUM 140 (10.202.AB[02]) - AIR CLEANER & INTAKE PARTS (10) - ENGINE

1

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

2

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

3

84352637

AIR CLEANER

Incl 13, 14

1шт.

4

82039344

HOSE CLAMP,20mm - 32mm

2шт.

5

84411830

AIR HOSE

1шт.

6

82038172

PIPE

1шт.

7

NSS

NOT SOLD SEPARAT

Hose, Incl in 10

1шт.

8

13387570

HOSE CLAMP

1шт.

9

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

10

84340051

HOSE

Incl 6 - 9

1шт.

11

87313773

CLAMP,100mm - 120mm, Worm Gear

2шт.

12

87522437

DUCT

1шт.

13

87704248

AIR FILTER,105.9mm ID x 207.6mm OD x 409.5mm L

Primary

1шт.

14

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Secondary

1шт.
