(55.525.AL[01]) - VAR - 330283 - ACCELERATOR HAND CONTROL LEVER

Запчасти Case IH MAXXUM 140 (55.525.AL[01]) - VAR - 330283 - ACCELERATOR HAND CONTROL LEVER (55) - ELECTRICAL SYSTEMS

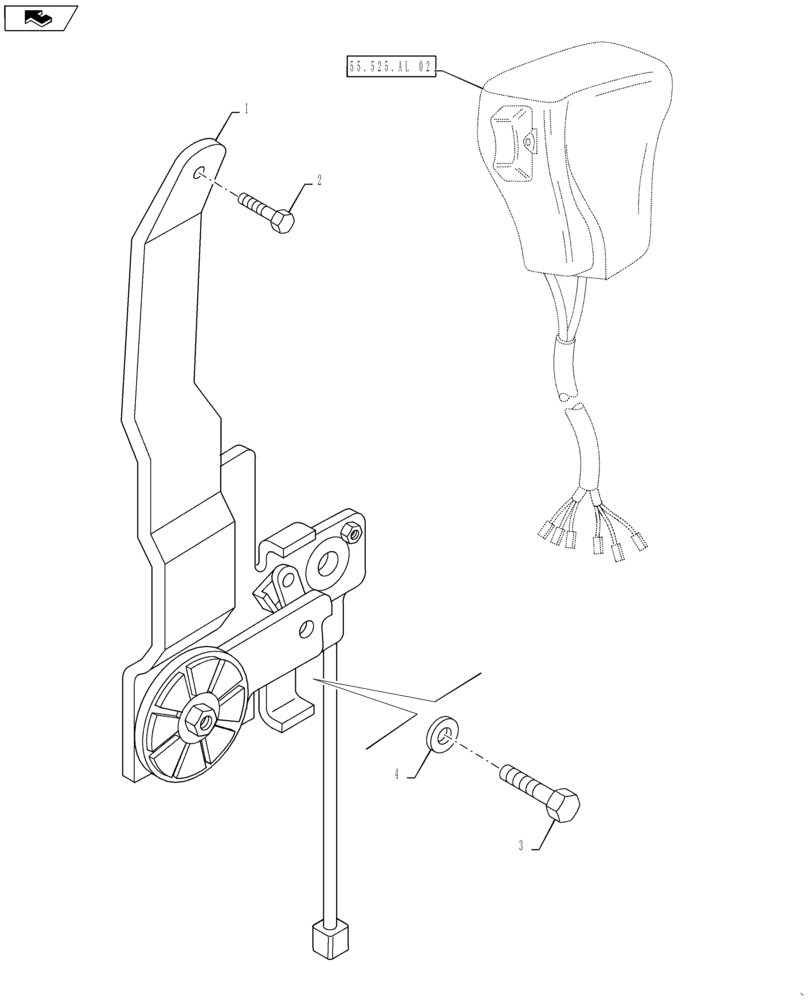

Схема запчастей Case IH MAXXUM 140 - (55.525.AL[01]) - VAR - 330283 - ACCELERATOR HAND CONTROL LEVER (55) - ELECTRICAL SYSTEMS
home
3
1
2
55.525.al 02
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82029022

THROTTLE CONTROL

Includes Potentiometer which is NSS

1шт.

2

14303321

SCREW,Hex, M4 x 20mm, Cl 8.8, Full Thd

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

83937016

LOCK WASHER,Serr, M8

2шт.
