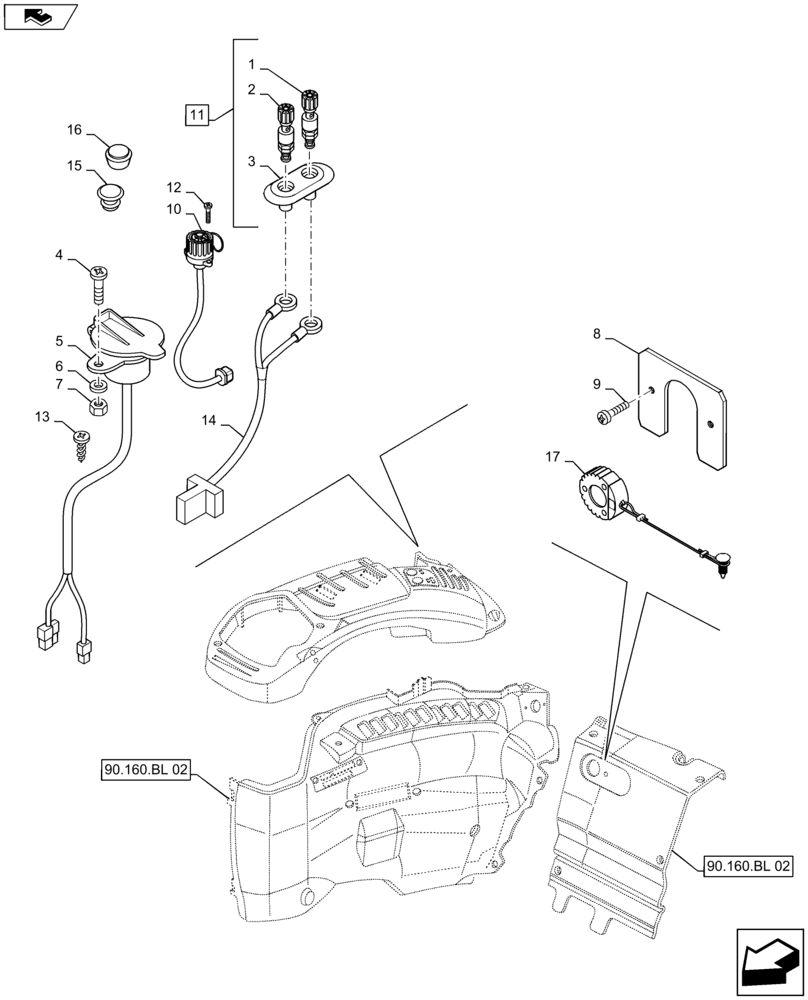

Запчасти Case IH MAXXUM 140 (55.510.BM[04]) - VAR - 330770, 330771, 743902, 330515, 330520, 743816, 331515, 331520, 743729 + STD - AUXILIARY POWER SOCKETS AND CAPS (55) - ELECTRICAL SYSTEMS

1

82003171

TERMINAL CONNECTOR

Red

1шт.

2

82003172

TERMINAL CONNECTOR

Black

1шт.

3

82003173

BEZEL

1шт.

4

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

Std Equipment or VAR 336007

2шт.

5

87583575

WIRE HARNESS

Implement Socket, 2 Connector, Std Equipment or VAR 336007

2шт.

6

14496201

WASHER,M4 x 9

Std Equipment or VAR 336007

2шт.

7

10794011

NUT,M4, Cl 8

Std Equipment or VAR 336007

2шт.

8

87313993

HOLDER

Std Equipment or VAR 330515, 330520, 743816, 331515, 331520, 743729

1шт.

9

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

Std Equipment or VAR 330515, 330520, 743816, 331515, 331520, 743729

2шт.

10

87345189

WIRE HARNESS

VAR 330770, 330771, 743902

1шт.

11

84266120

SOCKET,12V

Incl 1 - 3, Std Equipment or VAR 330515, 330520, 743816, 331515, 331520, 743729

1шт.

12

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

VAR 330770, 330771, 743902

2шт.

13

15650101

SCREW,M3.9 x 13mm

Std Equipment or VAR 336007

2шт.

14

82035388

WIRE HARNESS

Std Equipment

1шт.

15

82022823

PLUG

Radar Signal Socket, Std Equipment or VAR 330764

1шт.

16

87351624

BLANK-OFF PLUG

Std Equipment or VAR 330764

2шт.

17

87316393

CAP

Std Equipment or VAR 330515, 330520, 743816, 331515, 331520, 743729

1шт.
