(55.405.CK) - VAR - 330930 + STD - HEADLIGHT SWITCH

Запчасти Case IH MAXXUM 140 (55.405.CK) - VAR - 330930 + STD - HEADLIGHT SWITCH (55) - ELECTRICAL SYSTEMS

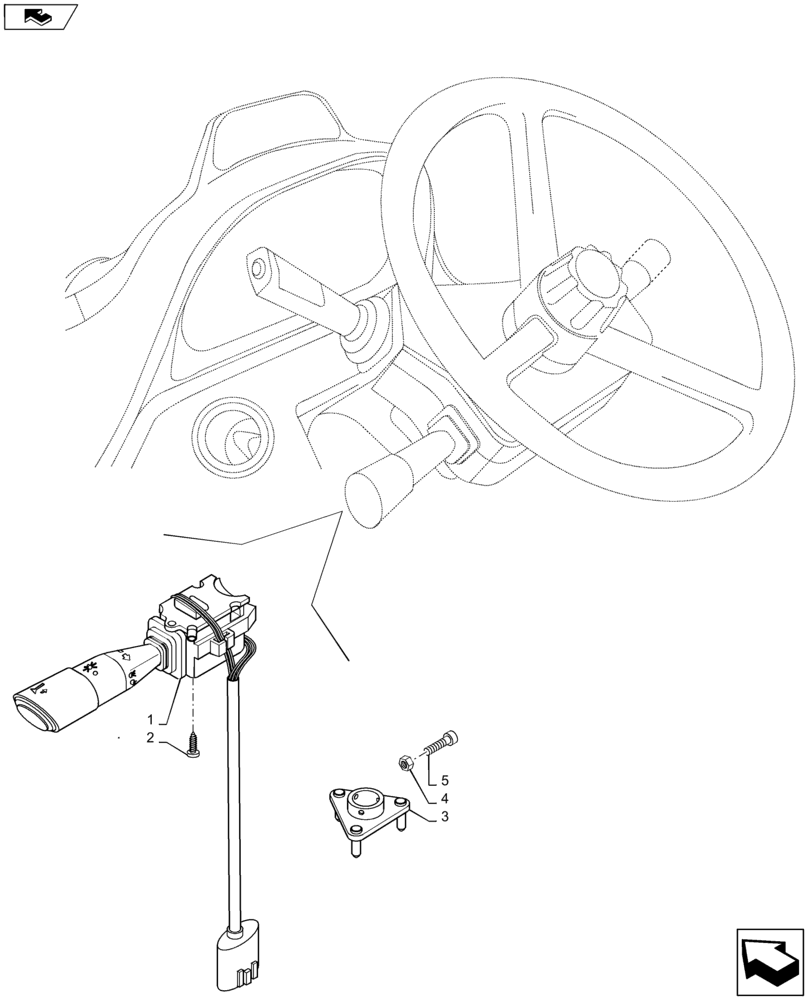

Схема запчастей Case IH MAXXUM 140 - (55.405.CK) - VAR - 330930 + STD - HEADLIGHT SWITCH (55) - ELECTRICAL SYSTEMS
3
home
5
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87490159

SWITCH ASSY

Head Light, Std Equipment

1шт.

1

87733123

SWITCH ASSY

Head Light, Self Cancelling Turn Indicators, VAR 330930

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

3шт.

3

87678850

ACTUATOR

Self Cancelling Turn Indicators, VAR 330930

1шт.

4

10794011

NUT,M4, Cl 8

Self Cancelling Turn Indicators, VAR 330930

3шт.

5

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

Self Cancelling Turn Indicators, VAR 330930

3шт.
