(55.405.CI[02]) - VAR - 330785, 330784, 330786, 743717, 330661, 331661, 331916, 333916 + STD - WORKLAMP LIGHT SWITCH

Запчасти Case IH MAXXUM 140 (55.405.CI[02]) - VAR - 330785, 330784, 330786, 743717, 330661, 331661, 331916, 333916 + STD - WORKLAMP LIGHT SWITCH (55) - ELECTRICAL SYSTEMS

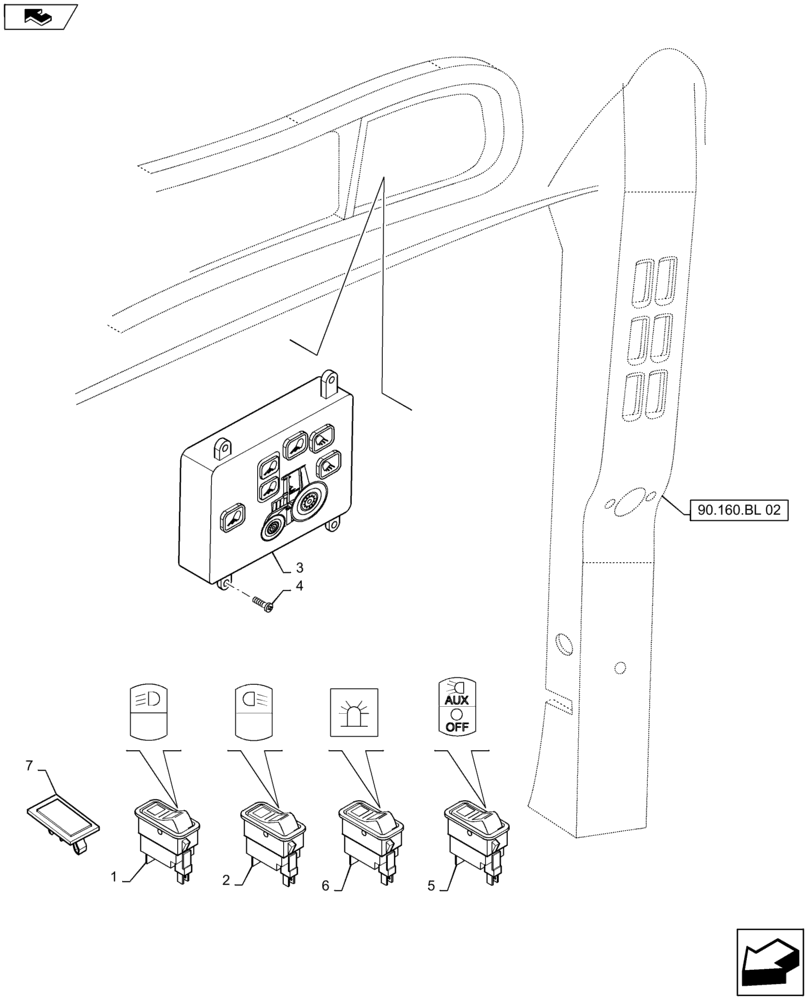

Схема запчастей Case IH MAXXUM 140 - (55.405.CI[02]) - VAR - 330785, 330784, 330786, 743717, 330661, 331661, 331916, 333916 + STD - WORKLAMP LIGHT SWITCH (55) - ELECTRICAL SYSTEMS
3
7
2
90.160.bl 02
1
home
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84203484

SWITCH ASSY

Front Worklamp, w/ Std Equipment or Low Roof, VAR 330784

1шт.

2

84203483

SWITCH ASSY

Rear Worklamp, w/ Std Equipment or Low Roof, VAR 330784

1шт.

3

87331993

ECU

Worklamps, w/ High Roof, VAR 330785, 330786

1шт.

4

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

4шт.

5

82029647

SWITCH ASSY

Auxiliary Lamps, w/ High Level Road Lighting, VAR 330661, 331661

1шт.

6

87309947

SWITCH ASSY

Rotating Beacon, w/ Std Equipment or Low Roof, VAR 330784

1шт.

7

82022763

PLUG

w/ Std Equipment or Low Roof, VAR 330784

2шт.

8

47474059

WIRE HARNESS

Link lead worklamp, Incl. 10

1шт.

Rotary Beacon, VAR.331916-333916

1шт.

9

47406284

PLASTIC PLUG

2шт.

Rotary Beacon, VAR.331916-333916

1шт.

10

82013124

RELAY,12V, 30A

30 Amp

2шт.

Rotary Beacon, VAR.331916-333916

1шт.
