(55.404.DB) - VAR - 336007, 330007, 335007, 743726, 330786, 743717 + STD - FLASHER UNIT AND RELAY

Запчасти Case IH MAXXUM 140 (55.404.DB) - VAR - 336007, 330007, 335007, 743726, 330786, 743717 + STD - FLASHER UNIT AND RELAY (55) - ELECTRICAL SYSTEMS

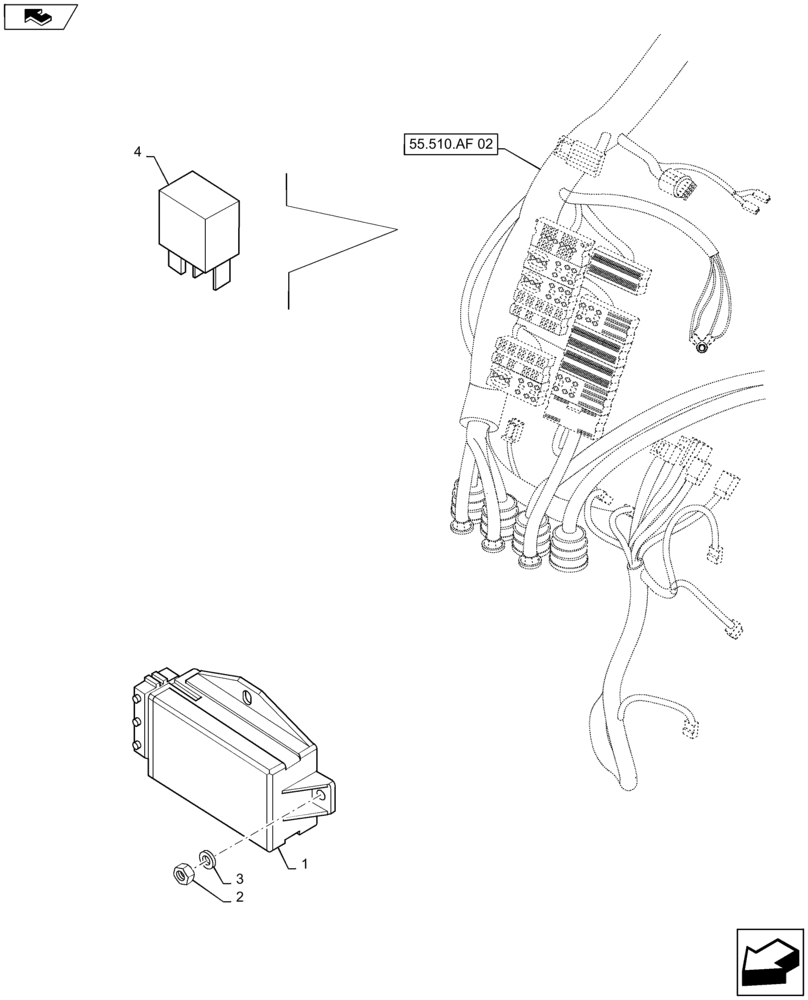

Схема запчастей Case IH MAXXUM 140 - (55.404.DB) - VAR - 336007, 330007, 335007, 743726, 330786, 743717 + STD - FLASHER UNIT AND RELAY (55) - ELECTRICAL SYSTEMS
2
3
1
55.510.af 02
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87577636

FLASHER UNIT

1шт.

With Standard Equipments for ISO Market Models

1шт.

With Europe Version for Full Cover Fenders, VAR 336007

1шт.

1

82038684

FLASHER UNIT

1шт.

NAR Configuration, VAR 330007, 335007, 743726

1шт.

2

15896211

NUT,M6, Cl 8

2шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

4

82023238

RELAY,12V, 20A

Flasher, NAR Configuration, VAR 330007, 335007, 743726

1шт.

With 8 Worklight for High Roof, VAR 330786, 743717

1шт.

With Europe Version for Full Cover Fenders, VAR 336007

1шт.
