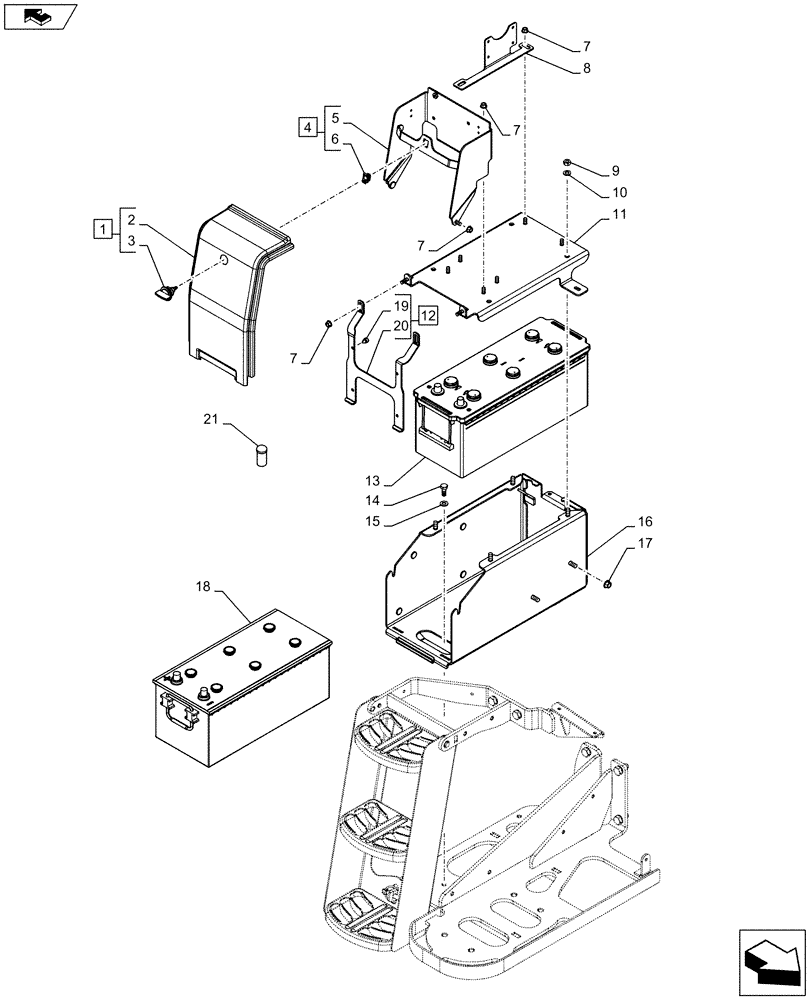

Запчасти Case IH MAXXUM 140 (55.302.AG) - VAR - 336138, 332563, 332560, 334560, 743900, 332564, 332562, 334562, 743901 + STD - BATTERY & BATTERY BOX (55) - ELECTRICAL SYSTEMS

1

84498645

COVER

Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

81866169

LATCH

1шт.

4

84515250

SUPPORT

Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 4

1шт.

6

83991620

RETAINER

1шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

8шт.

8

84494660

BRACKET

Also with Mechanical Mid Mount Valves, VAR 332563, 332560, 334560, 743900, 332564, 332562, 334562, 743901

1шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

4шт.

10

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

11

84471122

COVER

1шт.

12

84469738

BRACKET

Incl 19, 20

1шт.

13

BCMD4W

WET BATTERY,D4, 12V, 1200 CCA

140Ah, US

1шт.

14

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

15

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

16

84469752

BATTERY BOX

1шт.

17

43435

FLANGE NUT,Hex, M10 x 1.5

2шт.

18

BCMD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

176Ah, US, Heavy Duty, VAR 336138

1шт.

18

CBCMD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

176Ah, CAN, Heavy Duty, VAR 336138

1шт.

19

14624587

PLUG,D 6.3 x 3

4шт.

20

NSS

NOT SOLD SEPARAT

Bracket, Incl in 12

1шт.

21

84550098

CAP

2шт.
