(55.032.AC[02A]) - VAR - 332727, 332737, 332739 - PNEUMATIC TRAILER BRAKE - HARNESS - BEGIN S/N ZEBE51758

Запчасти Case IH MAXXUM 140 (55.032.AC[02A]) - VAR - 332727, 332737, 332739 - PNEUMATIC TRAILER BRAKE - HARNESS - BEGIN S/N ZEBE51758 (55) - ELECTRICAL SYSTEMS

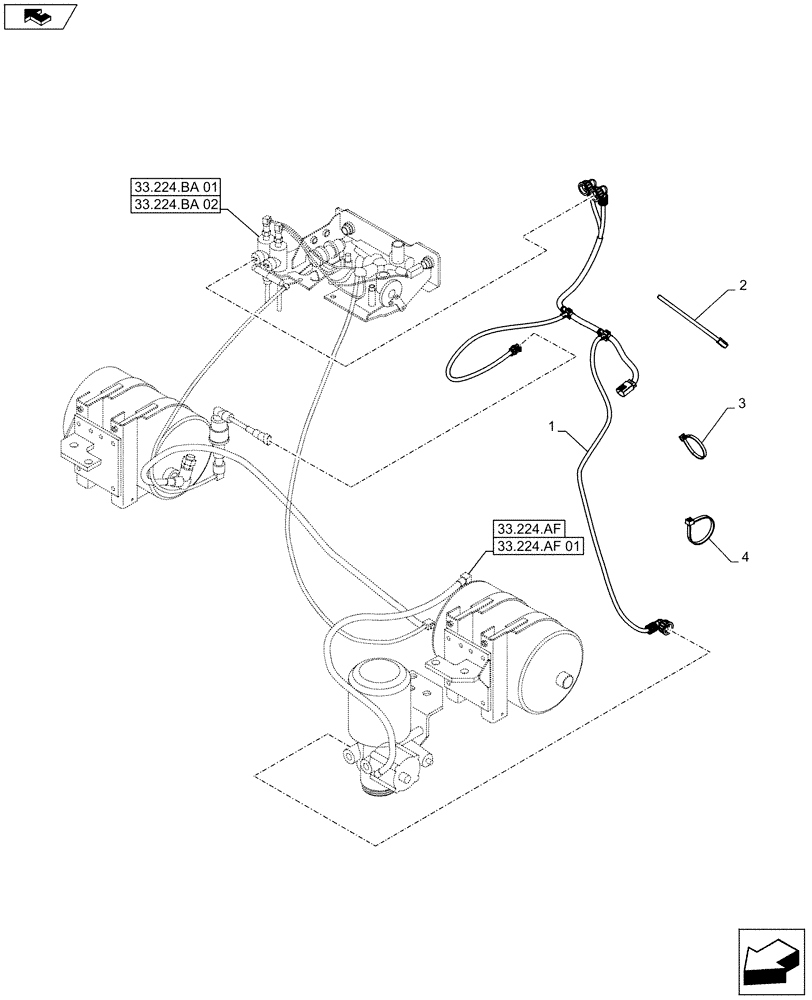

Схема запчастей Case IH MAXXUM 140 - (55.032.AC[02A]) - VAR - 332727, 332737, 332739 - PNEUMATIC TRAILER BRAKE - HARNESS - BEGIN S/N ZEBE51758 (55) - ELECTRICAL SYSTEMS
33.224.af
3
1
home
2
4
33.224.af 01
33.224.ba 01
33.224.ba 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47380270

WIRE HARNESS

Pneumatic Trailer Brake

1шт.

2

82013031

CABLE TIE,193mm L

193 x 4.8mm, Nylon Black

1шт.

3

14560187

COLLAR,199mm L

199 x 3.65mm, Nylon Black

1шт.

4

14560287

CABLE TIE,207.00mm L

277 x 4.75mm, Nylon Black

2шт.

Выбрано товаров: 4
