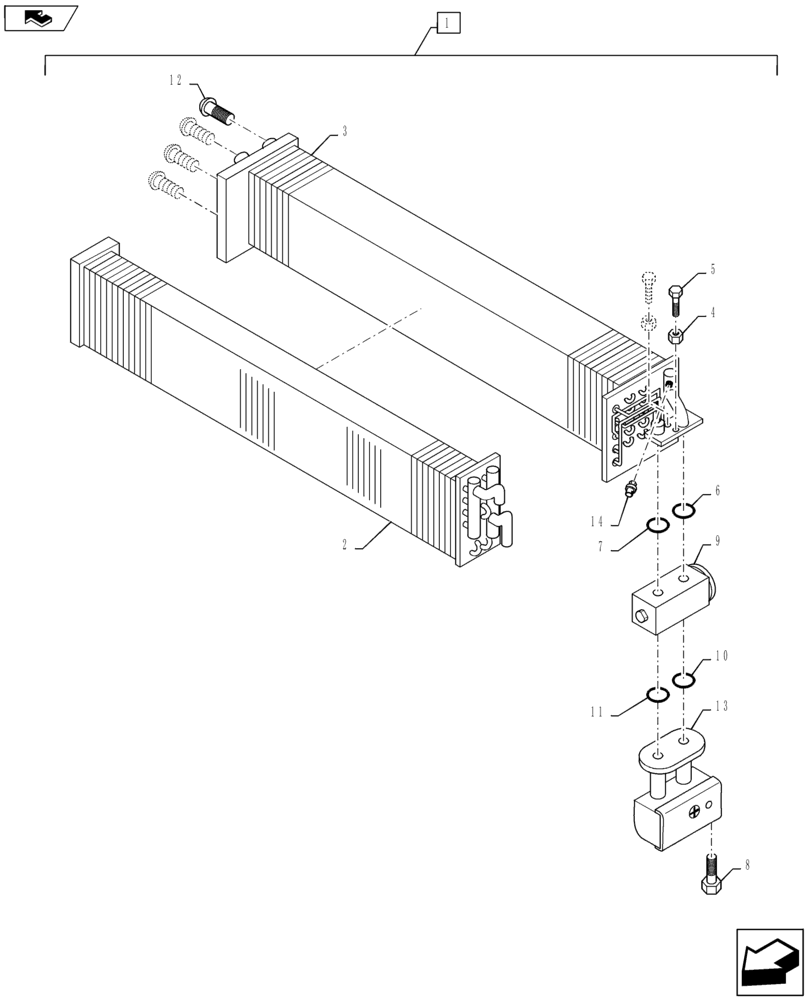

Запчасти Case IH MAXXUM 140 (50.200.CA[01]) - STD AIR CONDITIONING EVAPORATOR - BREAKDOWN (50) - CAB CLIMATE CONTROL

1

82033007

EVAPORATOR

Incl 2 - 14

1шт.

2

82033100

UNIT HEATER

1шт.

3

82033008

EVAPORATOR

Core

1шт.

4

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

5

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

6

82000791

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

8

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

9

82023542

VALVE, THERMAL EXPAN

1шт.

10

82000789

O-RING,1.85mm Thk x 17.6mm ID

1шт.

11

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

12

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

4шт.

13

82027885

PIPE

1шт.

14

84419250

PRESSURE SWITCH

Low

1шт.
