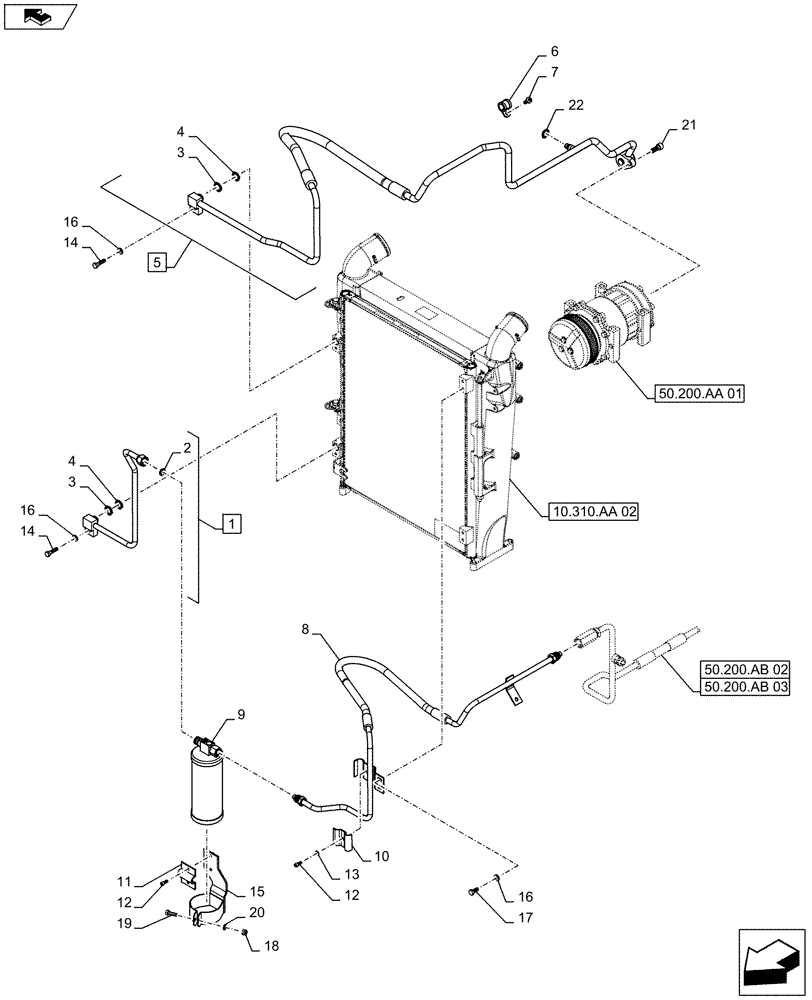

Запчасти Case IH MAXXUM 140 (50.200.AB[01]) - VAR - 330463 + STD - AIR CONDITIONING PIPES - C7171 (50) - CAB CLIMATE CONTROL

1

84238518

PIPE

Incl 2 - 4

1шт.

2

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

3

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

4

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

84245114

PIPE

Incl 3, 4, 22

1шт.

6

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

7

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

8

47418365

PIPE

1шт.

9

87374420

RECEIVER-DRYER

1шт.

10

87653304

BRACKET

2шт.

11

84233849

BRACKET

1шт.

12

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

3шт.

13

10615279

LOCK WASHER,M4, Serr

1шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

15

87750158

BRACKET

1шт.

16

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

17

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

18

12574221

NUT,M6 x 1, Cl 10

1шт.

19

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

20

10516474

LOCK WASHER

1шт.

21

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

1шт.

22

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.
