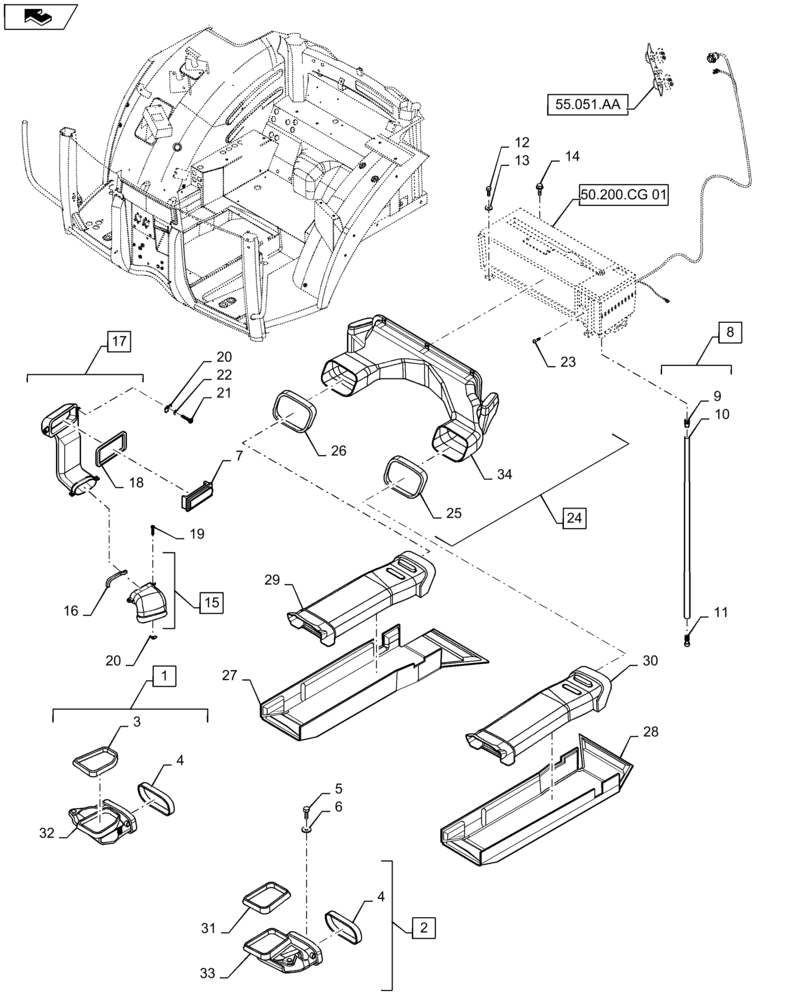

Запчасти Case IH MAXXUM 140 (50.104.AO[02]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

1

87518106

DUCT

RH, Incl 3, 4, 32

1шт.

2

87390278

DUCT

LH, Incl 3, 31, 33

1шт.

3

87523583

SEAL

1шт.

4

87523573

SEAL

1шт.

5

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

2шт.

6

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

7

87568776

DIFFUSER

2шт.

8

84232466

TUBE

A/C, Incl 9, 10, 11

2шт.

9

84231998

DRAIN

1шт.

10

84232468

HOSE,25.40 mm ID x 800.00 mm

A/C

1шт.

11

84232000

CHECK VALVE

1шт.

12

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

13

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

14

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

15

82034322

AIR DUCT

RH, Side Lower, Incl 16

1шт.

16

82024756

SEAL,8mm Thk

1шт.

17

82027039

AIR DUCT

Incl16, 18

1шт.

18

82022367

SEAL

1шт.

19

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

2шт.

20

83907330

SPRING NUT

4шт.

21

84187828

SCREW,Torx, Pan HD, M4.2 x 1.4 x 25mm

2шт.

22

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

23

82023989

CAPTIVE WASHER SCREW,Cross Pan Hd, #8 - 18 x 0.75", Type AB Thd Forming Pt

10шт.

24

82034311

AIR DUCT

Incl 25, 26, 34

1шт.

25

82034490

SEAL

2шт.

26

82033452

SEAL

2шт.

27

87661587

INSULATOR

RH

1шт.

28

87661589

INSULATOR

LH

1шт.

29

87301551

DUCT

RH

1шт.

30

87301550

DUCT

LH

1шт.

31

87523726

SEAL

1шт.

32

NSS

NOT SOLD SEPARAT

Duct, Incl in 1

1шт.

33

NSS

NOT SOLD SEPARAT

Duct, Incl in 2

1шт.

34

NSS

NOT SOLD SEPARAT

Duct, Incl in 24

1шт.
