Запчасти Case IH MAXXUM 140 (50.104.AH[02]) - VAR - 330643 - HEATING/AIR CONDITIONING - DUCT AND INSULATION (50) - CAB CLIMATE CONTROL

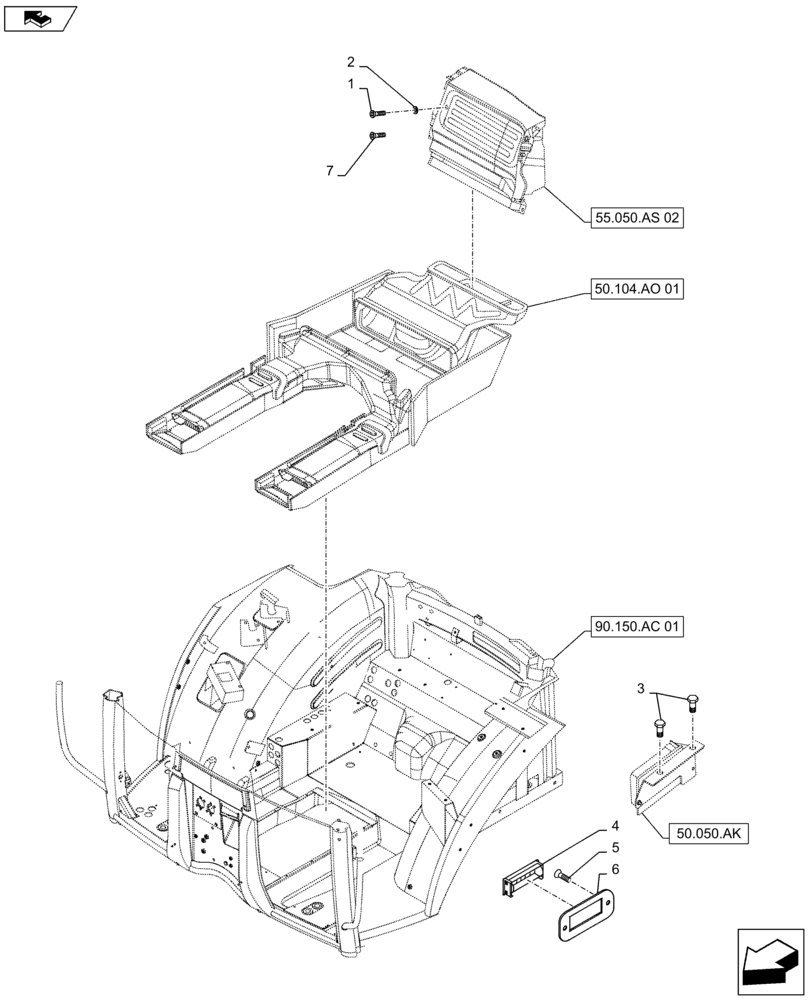

Схема запчастей Case IH MAXXUM 140 - (50.104.AH[02]) - VAR - 330643 - HEATING/AIR CONDITIONING - DUCT AND INSULATION (50) - CAB CLIMATE CONTROL
4
1
50.050.ak
5
6
home
7
3
2
50.104.ao 01
55.050.as 02
90.150.ac 01

Артикул

Название

Примечание

Количество

1

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

, Years: -19-JAN-12, Serial Range: -C7254

2шт.

2

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

3

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

4

87568776

DIFFUSER

2шт.

5

84187828

SCREW,Torx, Pan HD, M4.2 x 1.4 x 25mm

2шт.

6

82022361

SUPPORT

1шт.

7

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

, Start Year: 20-JAN-12, Start Serial: D7254

2шт.

Выбрано товаров: 7
