Запчасти Case IH MAXXUM 140 (41.216.AV[01]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - STEERING CYLINDER AND POWER STEERING PIPES (41) - STEERING

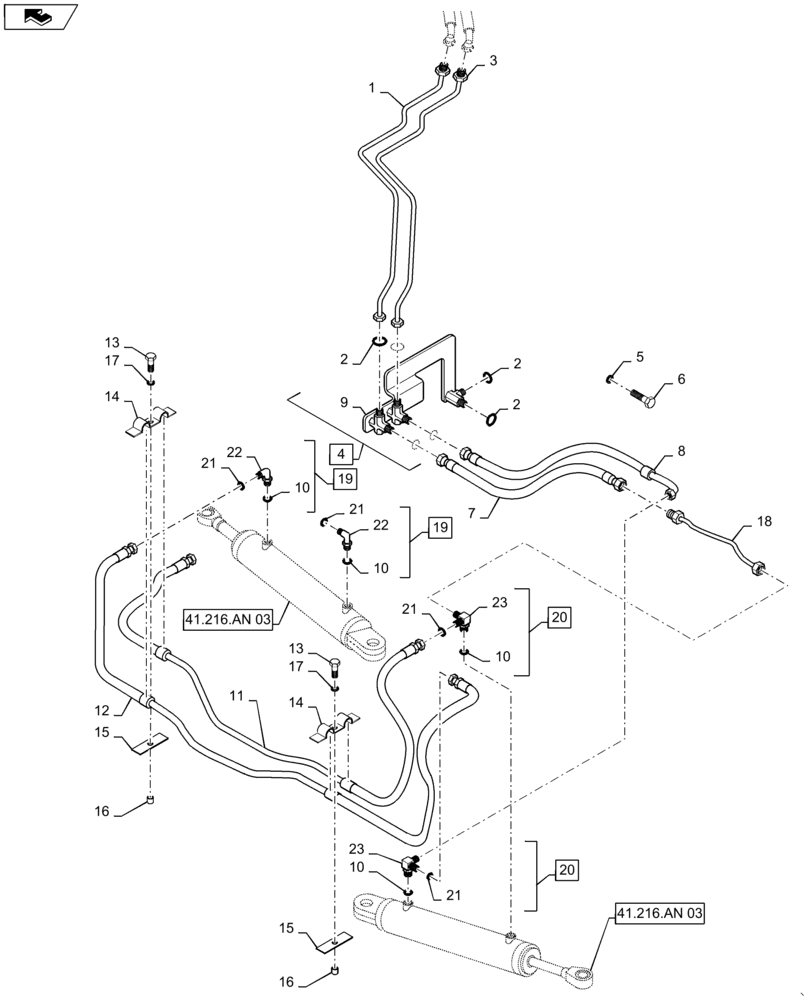

Схема запчастей Case IH MAXXUM 140 - (41.216.AV[01]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - STEERING CYLINDER AND POWER STEERING PIPES (41) - STEERING
18
10
13
15
16
21
23
22
19
15
10
20
41.216.an 03
21
10
13
16
home
2
8
21
4
6
9
5
11
7
22
20
14
14
3
23
10
17
2
21
12
17
19
1
2
41.216.an 03

Артикул

Название

Примечание

Количество

1

84188754

HYD TUBE,8 mm ID x 10 mm OD

Maxxum 110, 120, 130

1шт.

1

84188757

HYD TUBE,8 mm ID x 10 mm OD

Maxxum 115, 125, 140

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

3

84188755

HYD TUBE,8 mm ID x 10 mm OD

Maxxum 110, 120, 130

1шт.

3

84188758

HYD TUBE,8 mm ID x 10 mm OD

Maxxum 115, 125, 140

1шт.

4

87325469

SUPPORT ASSY.

Incl 2, 9

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

82036782

HYDRAULIC HOSE,450.00mm

1шт.

8

87359495

HYDRAULIC HOSE,520.00mm

1шт.

9

NSS

NOT SOLD SEPARAT

Support w/ Hydraulic Fittings, Incl in 4

1шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

11

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

RH

1шт.

12

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

LH

1шт.

13

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

14

5188504

BRACKET

2шт.

15

5188503

BRACKET

2шт.

16

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

18

87517475

HYD TUBE,10.00mm OD x 228.00mm, 50.00mm L

1шт.

19

47127165

90 ELBOW

Incl 10, 21, 22

2шт.

20

5188443

90 ELBOW

Incl 10, 21, 23

2шт.

21

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

2шт.

Выбрано товаров: 25
