(41.200.AE[03]) - VAR - 333679 + STD - HYDROSTATIC STEERING WITH 80L/MIN FD PUMP AND CAB SUSPENSION STEERING MOTOR PIPES

Запчасти Case IH MAXXUM 140 (41.200.AE[03]) - VAR - 333679 + STD - HYDROSTATIC STEERING WITH 80L/MIN FD PUMP AND CAB SUSPENSION STEERING MOTOR PIPES (41) - STEERING

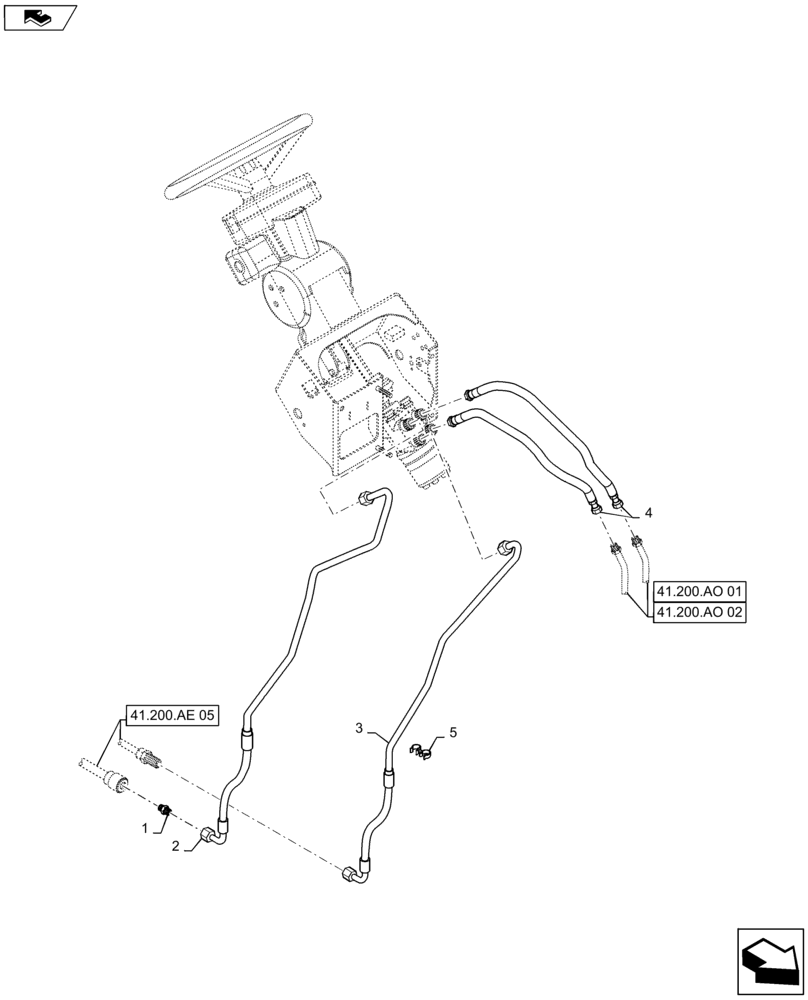

Схема запчастей Case IH MAXXUM 140 - (41.200.AE[03]) - VAR - 333679 + STD - HYDROSTATIC STEERING WITH 80L/MIN FD PUMP AND CAB SUSPENSION STEERING MOTOR PIPES (41) - STEERING
home
4
3
41.200.ao 01
41.200.ao 02
2
41.200.ae 05
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82030315

HYD CONNECTOR

1шт.

2

82036218

TUBE

Steering Return

1шт.

3

84209307

TUBE

Steering Supply

1шт.

4

82035848

HYDRAULIC HOSE

Steering Motor

2шт.

5

82035888

CLIP,16mm

1шт.
