Запчасти Case IH MAXXUM 140 (37.106.AA[07]) - VAR - 331945 - AUTOMATIC PICK UP HITCH WITH HYDR. PUSH BACK, WITH SWINGING DRAWBAR - TIE ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

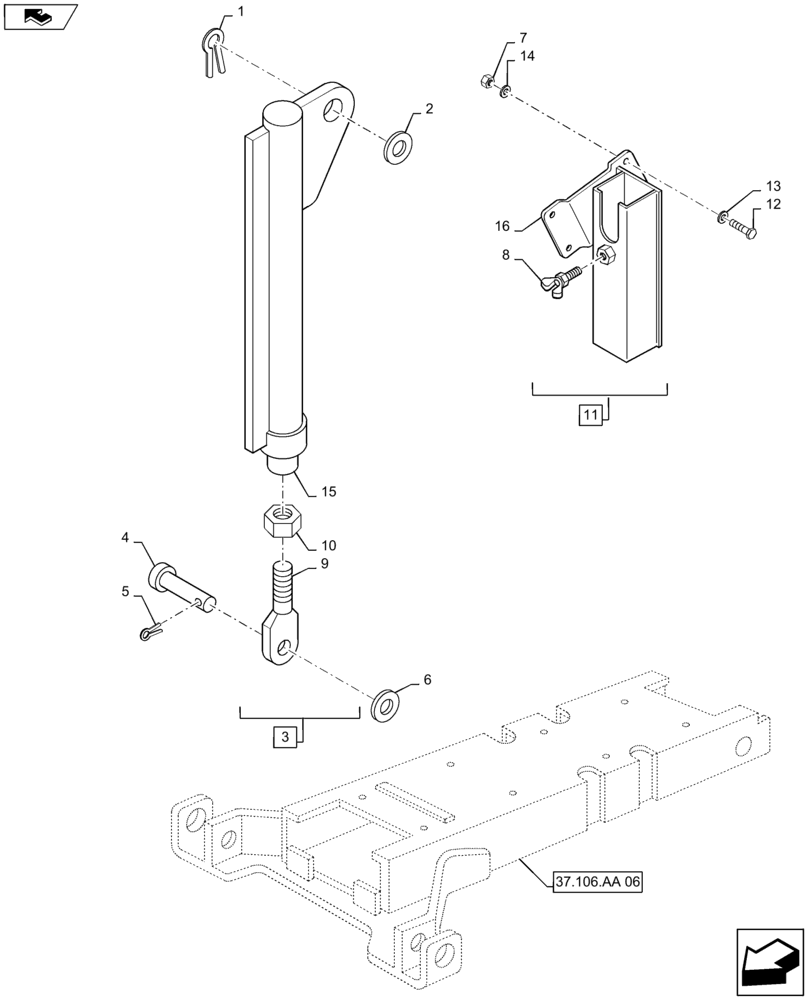

Схема запчастей Case IH MAXXUM 140 - (37.106.AA[07]) - VAR - 331945 - AUTOMATIC PICK UP HITCH WITH HYDR. PUSH BACK, WITH SWINGING DRAWBAR - TIE ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
15
home
16
37.106.aa 06
12
9
1
11
10
5
2
4
6
13
14
3
8
7

Артикул

Название

Примечание

Количество

1

10797801

COTTER PIN,M6.3 x 50.00mm

2шт.

2

14497101

WASHER,M20 x 37 x 3

2шт.

3

82036641

LIFTING ROD

Incl 9, 10, 15

2шт.

4

82036627

PIN,25mm OD x 70mm L

2шт.

5

81868739

COTTER PIN

2шт.

6

83908648

WASHER,25.65mm ID x 46.43mm OD x 3.18mm Thk

2шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

8

82039554

WING NUT,Screw, M10 x 20.00mm, STL, ZND

1шт.

9

82012780

CLEVIS,M18

1шт.

10

10703211

THIN NUT,Thin, M18 x 1.5, Cl R04

1шт.

11

87517338

BRACKET

Incl 8, 16

1шт.

12

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

83937016

LOCK WASHER,Serr, M8

4шт.

15

NSS

NOT SOLD SEPARAT

Lifting Rod, Incl in 3

1шт.

16

NSS

NOT SOLD SEPARAT

Bracket, Incl in 11

1шт.

Выбрано товаров: 16
