Запчасти Case IH MAXXUM 140 (35.701.AD[02]) - VAR - 332821, 334821, 743702 - EUROPEAN LOADER READY -FAST-FITTING CONNECTION AND PIPES (35) - HYDRAULIC SYSTEMS

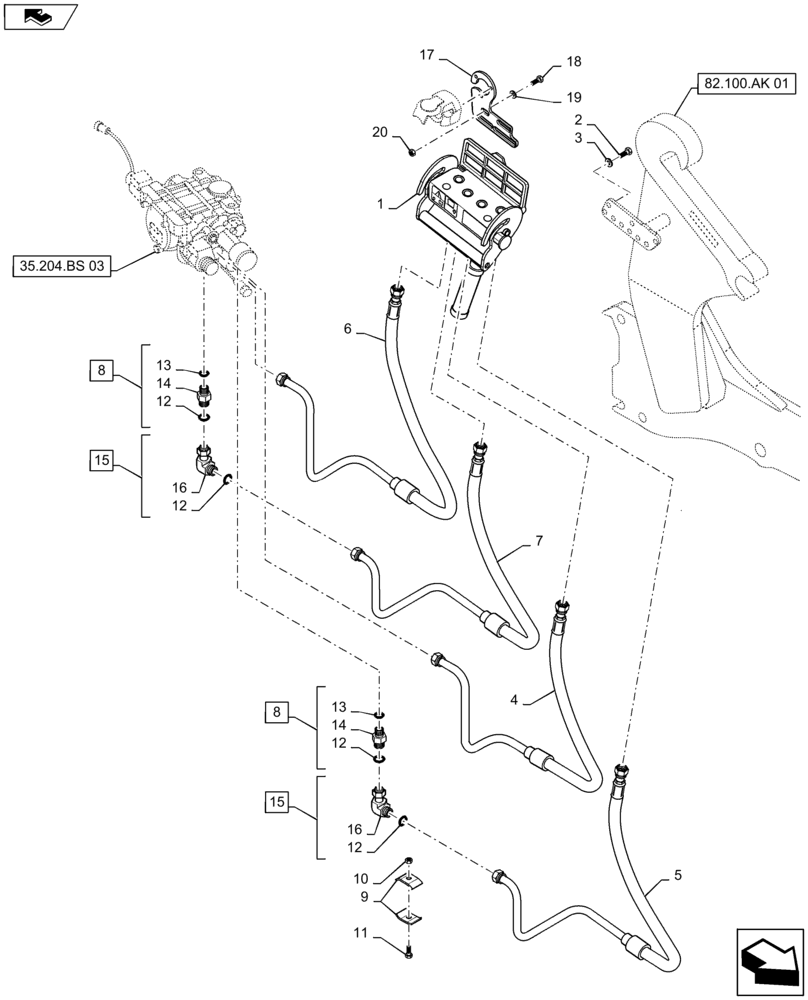

Схема запчастей Case IH MAXXUM 140 - (35.701.AD[02]) - VAR - 332821, 334821, 743702 - EUROPEAN LOADER READY -FAST-FITTING CONNECTION AND PIPES (35) - HYDRAULIC SYSTEMS
12
5
1
12
15
9
11
8
17
16
19
6
7
15
home
13
18
35.204.bs 03
16
3
13
10
14
8
82.100.ak 01
12
2
14
20
4
12

Артикул

Название

Примечание

Количество

1

87733579

COUPLING

1шт.

2

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

2шт.

4

84514778

HYD TUBE

Loader Crowd, Serial Range: -C7176

1шт.

4

84570342

FLEXIBLE HOSE

Loader Crowd, Start Serial: D7176

1шт.

5

84514780

HYD TUBE

Loader Tip, Serial Range: -C7176

1шт.

5

84570344

FLEXIBLE HOSE

Loader Tip, Start Serial: D7176

1шт.

6

84514782

HYD TUBE

Loader Raise, Serial Range: -C7176

1шт.

6

84570347

FLEXIBLE HOSE

Loader Raise, Start Serial: D7176

1шт.

7

84514784

HYD TUBE

Loader Lower, Serial Range: -C7176

1шт.

7

84570350

FLEXIBLE HOSE

Loader Lower, Start Serial: D7176

1шт.

8

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 12 - 14

2шт.

9

47057074

CLAMP,48.6mm x 30mm

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

1шт.

11

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

15

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 12, 16

2шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

17

87736290

BRACKET

1шт.

18

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

19

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

20

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

Выбрано товаров: 24
