Запчасти Case IH MAXXUM 140 (35.204.BS[04]) - VAR - 332564, 332562, 334562, 743901 - 3 MECHANICAL MID MOUNTED VALVES - DISTRIBUTOR AND SUPPORT (35) - HYDRAULIC SYSTEMS

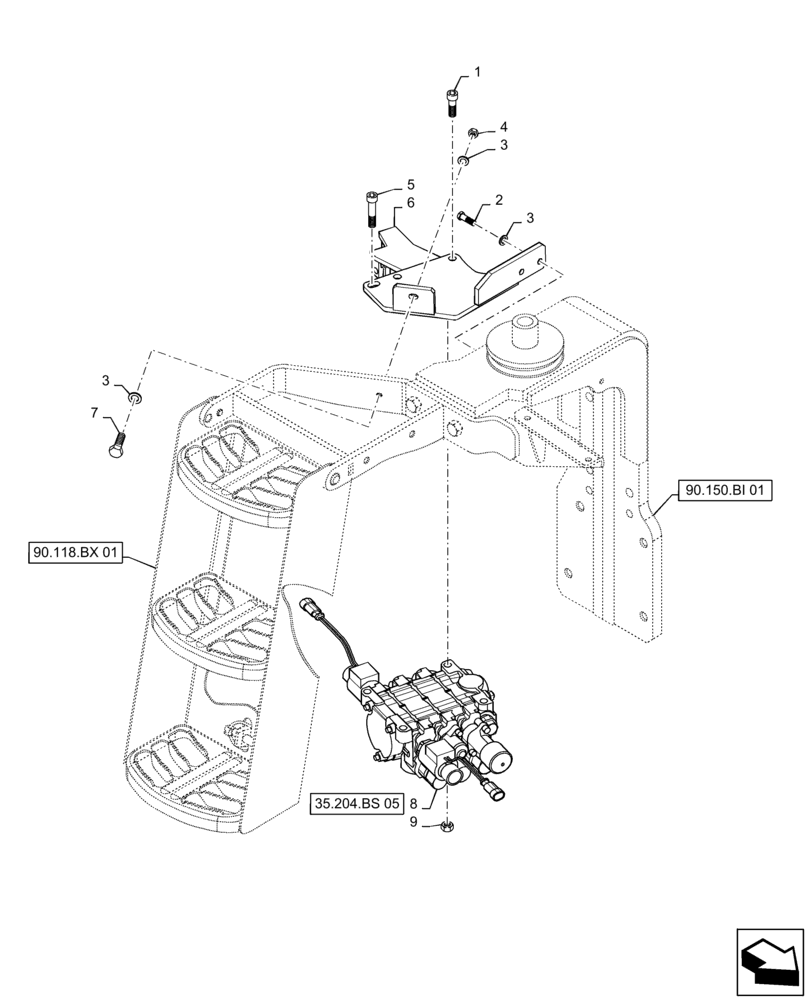

Схема запчастей Case IH MAXXUM 140 - (35.204.BS[04]) - VAR - 332564, 332562, 334562, 743901 - 3 MECHANICAL MID MOUNTED VALVES - DISTRIBUTOR AND SUPPORT (35) - HYDRAULIC SYSTEMS
3
1
9
3
35.204.bs 05
90.150.bi 01
3
5
90.118.bx 01
6
7
4
2
8

Артикул

Название

Примечание

Количество

1

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

2

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16100814

NUT,M8, Cl 8, DAC

4шт.

5

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

6

84476352

BRACKET

1шт.

7

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

8

82030383

VALVE SECTION

, Serial Range: -CZCBE57526

1шт.

8

47367743

VALVE SECTION

, Start Serial: DZCBE57527

1шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

Выбрано товаров: 10
