Запчасти Case IH MAXXUM 140 (35.204.BQ[04]) - VAR - 331856, 743686 - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH "POWER BEYOND" WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

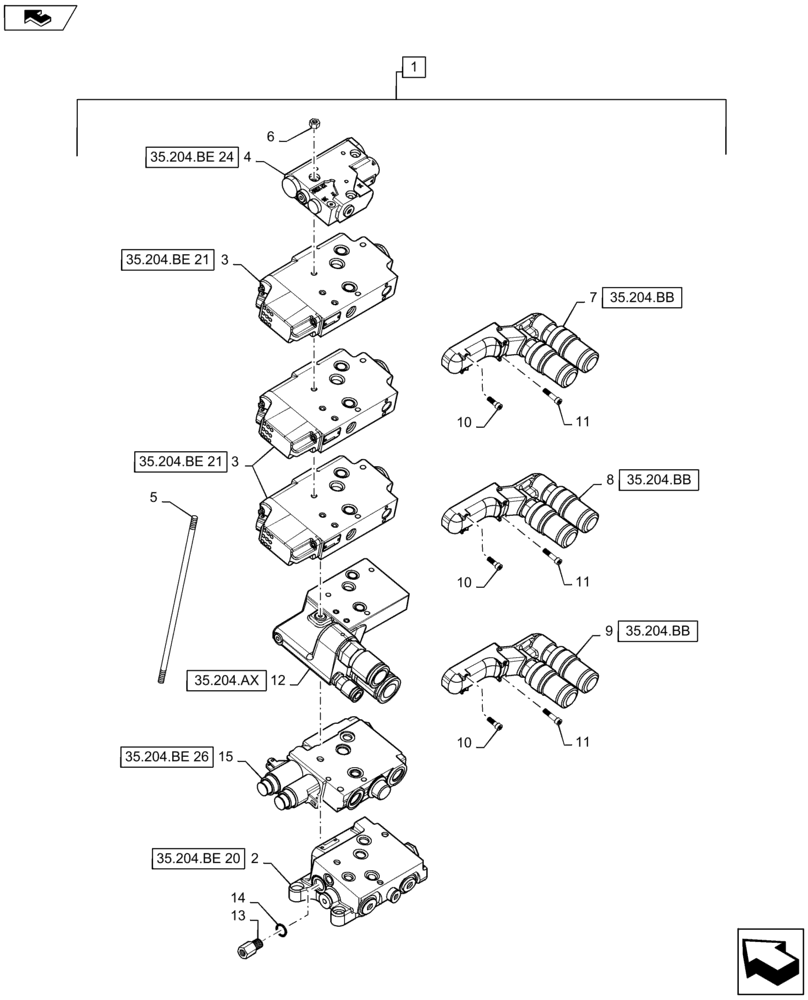

Схема запчастей Case IH MAXXUM 140 - (35.204.BQ[04]) - VAR - 331856, 743686 - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH "POWER BEYOND" WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS
5
35.204.be 24
6
35.204.bb
3
10
2
8
12
10
35.204.be 21
3
11
35.204.be 26
35.204.be 20
35.204.ax
home
9
1
4
11
14
11
10
15
13
35.204.be 21
7
35.204.bb
35.204.bb

Артикул

Название

Примечание

Количество

1

84266083

CONTROL VALVE

Incl 2 - 15

1шт.

2

87730706

CONTROL VALVE

1шт.

3

84230181

HYD VALVE SECTION

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

47129473

THREADED TIE-ROD

3шт.

6

5195169

NUT,M8

3шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

12

84146807

HYD VALVE SECTION

1шт.

13

5191704

CHECK VALVE

1шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

15

84175671

VALVE SECTION

1шт.

Выбрано товаров: 15
