Запчасти Case IH MAXXUM 140 (35.204.BQ[03]) - VAR - 331856, 743686 - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH "POWER BEYOND" WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR, COVER AND OIL COLLECTOR (35) - HYDRAULIC SYSTEMS

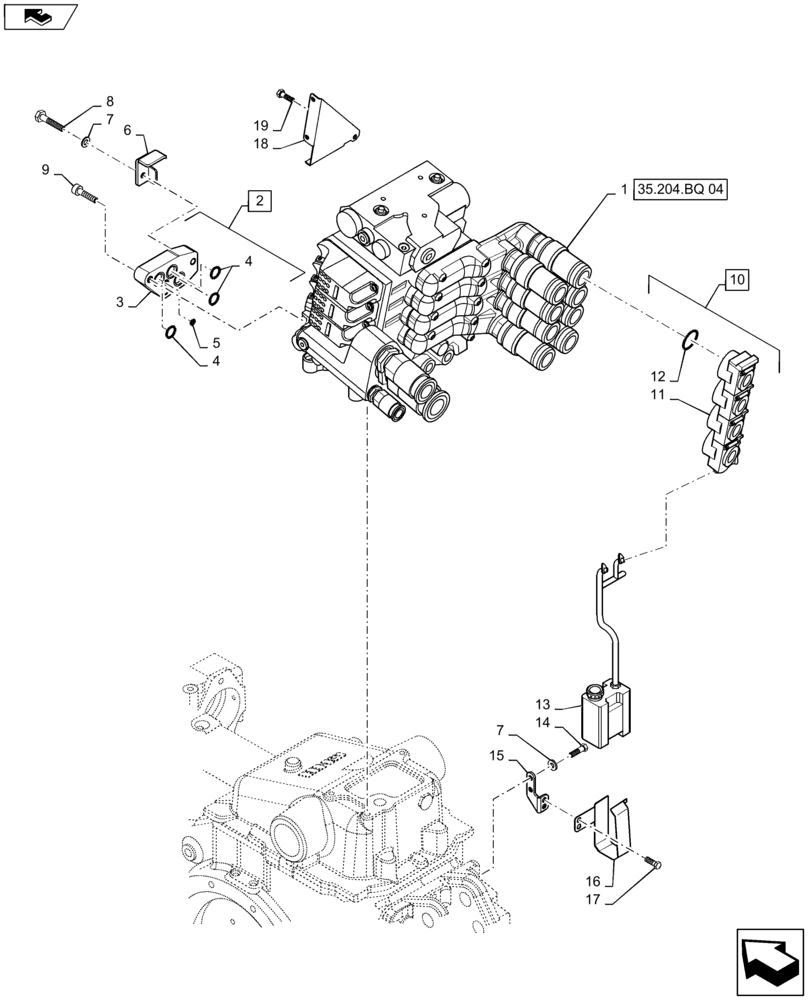

Схема запчастей Case IH MAXXUM 140 - (35.204.BQ[03]) - VAR - 331856, 743686 - 3 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES WITH "POWER BEYOND" WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR, COVER AND OIL COLLECTOR (35) - HYDRAULIC SYSTEMS
13
3
4
14
15
11
home
9
8
6
1
10
35.204.bq 04
5
16
2
17
12
7
4
18
7
19

Артикул

Название

Примечание

Количество

1

84266083

CONTROL VALVE

1шт.

2

5199101

COVER

Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

4

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

5

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

6

84478254

BRACKET

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

8

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

9

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

10

84338823

DUST CAP

Incl 11, 12

2шт.

11

NSS

NOT SOLD SEPARAT

Dust Cap, Incl in 10

1шт.

12

14454580

O-RING,34.65mm ID x 1.78mm

6шт.

13

84287277

RESERVOIR, HYDRAULIC

1шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

84311423

SUPPORT

1шт.

16

84312030

SUPPORT

1шт.

17

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

18

87652790

SUPPORT

1шт.

19

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 19
