Запчасти Case IH MAXXUM 140 (35.204.BL[08]) - VAR - 334845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES WITH DIVERTER - CABLES AND RELATED PARTS (35) - HYDRAULIC SYSTEMS

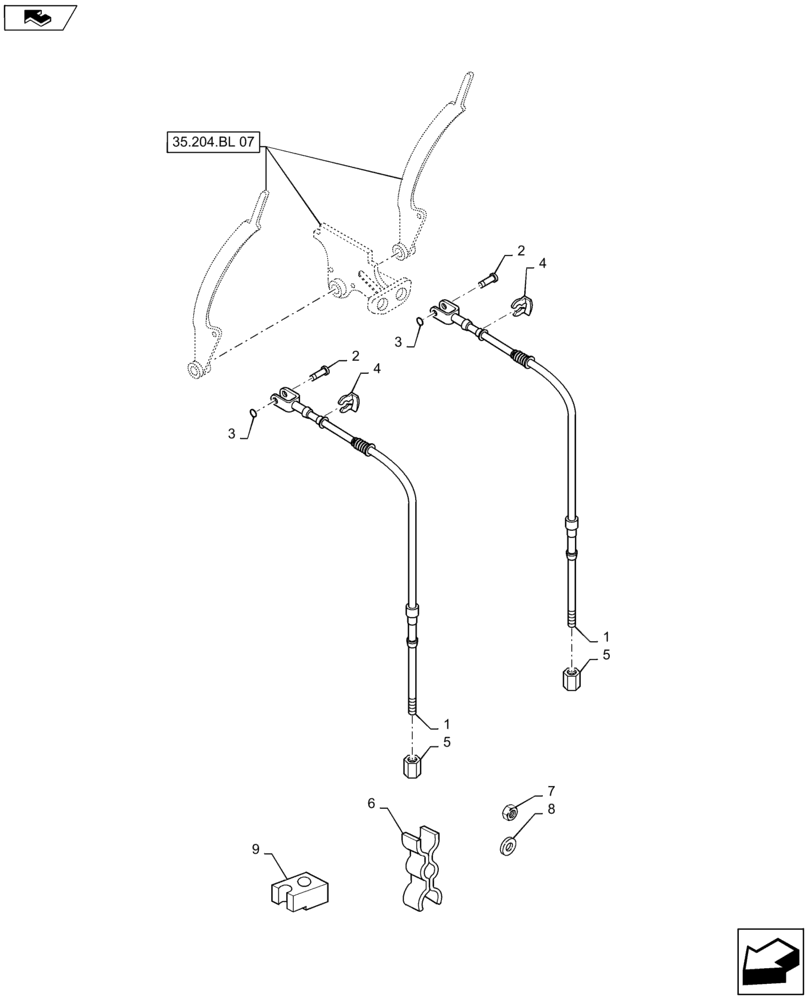

Схема запчастей Case IH MAXXUM 140 - (35.204.BL[08]) - VAR - 334845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES WITH DIVERTER - CABLES AND RELATED PARTS (35) - HYDRAULIC SYSTEMS
8
4
4
5
1
6
3
5
9
35.204.bl 07
7
2
1
2
home
3

Артикул

Название

Примечание

Количество

1

87678198

CABLE,1828mm L

Remote Control Valve

2шт.

2

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

2шт.

3

11087776

CIRCLIP,Ext., M6, BLO

2шт.

4

83982632

CLIP

2шт.

5

82012528

NUT,Hex, M6 x 1

4шт.

6

5191951

CLAMP,3 Hoses

1шт.

7

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

8

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

47132225

BRACKET

1шт.

Выбрано товаров: 9
