Запчасти Case IH MAXXUM 140 (35.204.BL[07]) - VAR - 334845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES WITH DIVERTER - FRAME AND CONTROL LEVERS (35) - HYDRAULIC SYSTEMS

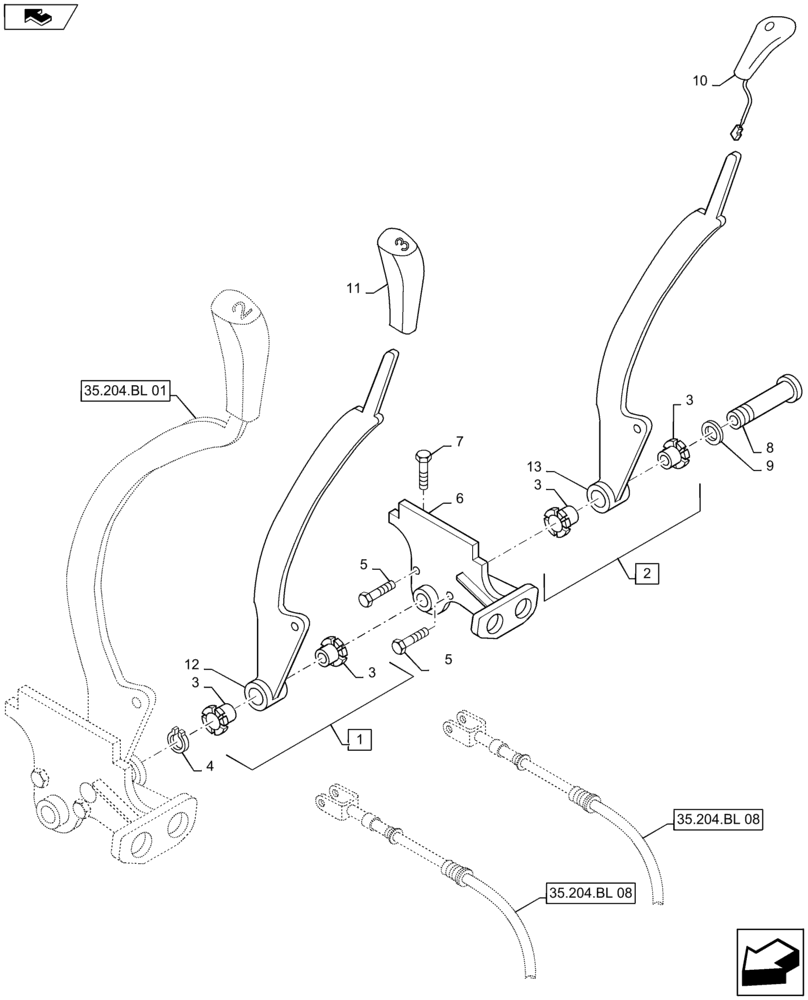

Схема запчастей Case IH MAXXUM 140 - (35.204.BL[07]) - VAR - 334845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES WITH DIVERTER - FRAME AND CONTROL LEVERS (35) - HYDRAULIC SYSTEMS
7
35.204.bl 08
3
35.204.bl 01
home
4
3
5
3
2
9
10
3
35.204.bl 08
12
5
1
6
13
11
8

Артикул

Название

Примечание

Количество

1

82036839

LEVER

3rd, Incl 3, 12

1шт.

2

82038176

LEVER

4th, Incl 3, 13

1шт.

3

82035633

BUSHING

4шт.

4

11088171

SNAP RING,M11

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

6

87308465

HOUSING

1шт.

7

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

8

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

9

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

10

87317960

SWITCH ASSY

1шт.

11

82037912

KNOB

1шт.

12

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Lever, Incl in 2

1шт.

Выбрано товаров: 13
