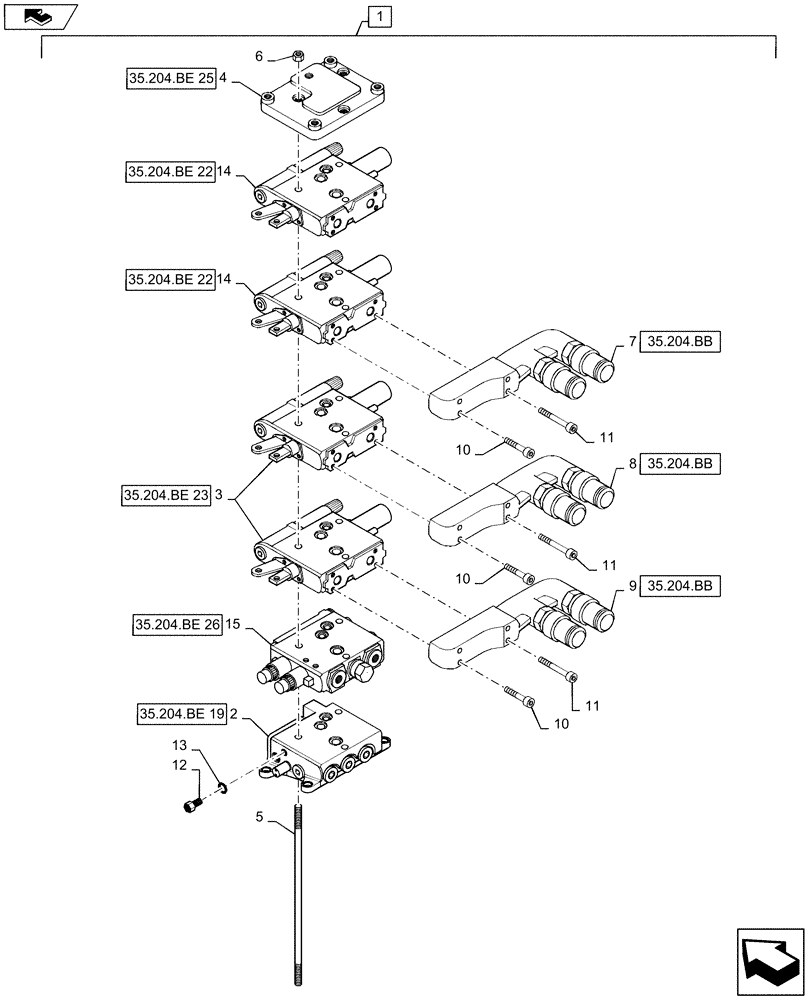

Запчасти Case IH MAXXUM 140 (35.204.BE[18]) - VAR - 333845, 334845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES ( 2 NON CONFIGURABLE ) WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

87311423

CONTROL VALVE

Incl 2 - 15

1шт.

2

87730706

CONTROL VALVE

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

87328572

HYD VALVE SECTION

2шт.

3

87328572R

REMAN-HYD VALVE

2шт.

3

87328572C

CORE-VALVE HYD

Return Number

2шт.

4

5192188

BODY

1шт.

5

47129476

THREADED TIE-ROD,M8

3шт.

6

5195169

NUT,M8

3шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

11

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

12

5191704

CHECK VALVE

1шт.

13

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

14

87546169

CONTROL VALVE

2шт.

14

87546169R

REMAN-HYD VALVE

2шт.

14

87546169C

CORE-VALVE HYD

Return Number

2шт.

15

84175671

VALVE SECTION

EDC

1шт.

15

84175671R

REMAN-HYD VALVE

EDC

1шт.

15

84175671C

CORE-VALVE HYD

Return Number

1шт.
