Запчасти Case IH MAXXUM 140 (35.204.BE[16]) - VAR - 331845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES ( 2 NON CONFIGURABLE ) WITH PUMP 80 L/MIN FD - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

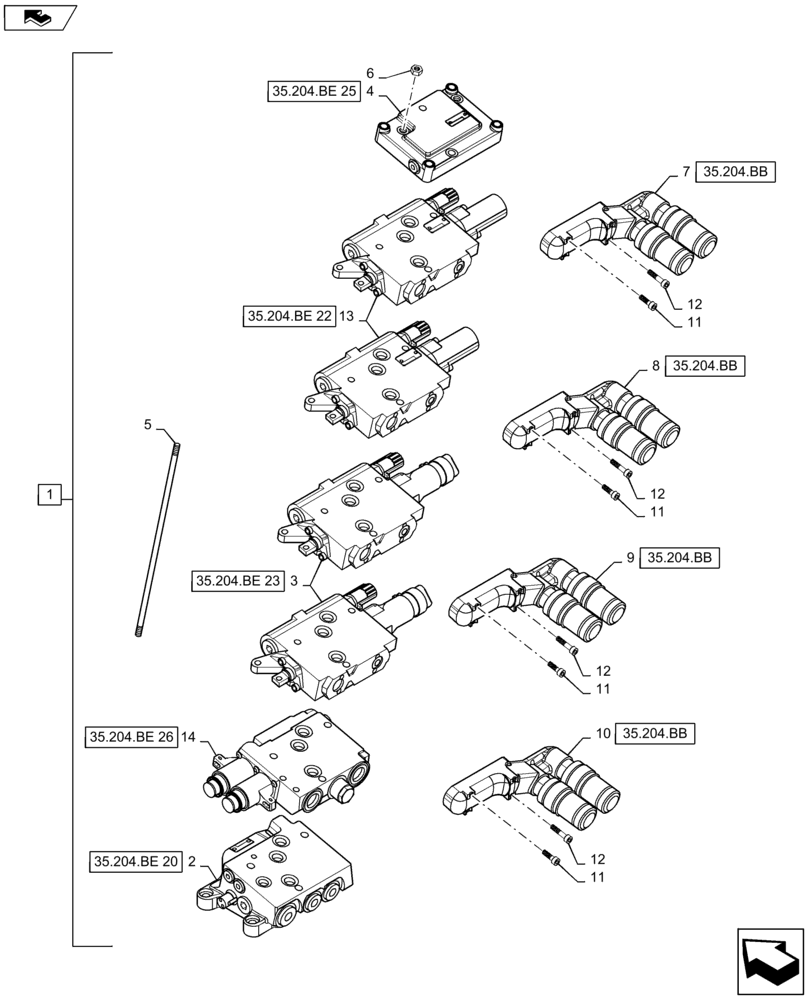

Схема запчастей Case IH MAXXUM 140 - (35.204.BE[16]) - VAR - 331845, 743685 - 4 MECHANICAL REAR REMOTE CONTROL VALVES ( 2 NON CONFIGURABLE ) WITH PUMP 80 L/MIN FD - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS
2
35.204.be 25
11
6
12
14
12
11
3
1
8
11
35.204.be 26
35.204.bb
35.204.bb
35.204.bb
7
11
9
35.204.be 20
35.204.bb
13
5
35.204.be 23
10
12
4
12
35.204.be 22
home

Артикул

Название

Примечание

Количество

1

87311386

CONTROL VALVE

Incl 2 - 14

1шт.

2

5192186

DISTRIBUTOR

1шт.

3

87328572

HYD VALVE SECTION

2шт.

4

5192188

BODY

1шт.

5

47129476

THREADED TIE-ROD,M8

3шт.

6

5195169

NUT,M8

3шт.

7

87381965

QUICK MALE COUPLING

1шт.

8

87381964

QUICK MALE COUPLING

1шт.

9

87381963

QUICK MALE COUPLING

1шт.

10

87381958

QUICK MALE COUPLING

1шт.

11

47129474

HEX SOC SCREW,M6 x 35mm

8шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

8шт.

13

87546169

CONTROL VALVE

2шт.

14

84175671

VALVE SECTION

EDC

1шт.

Выбрано товаров: 14
