/ / / / / / / / (35.204.BE[12]) - VAR - 333844, 743741 - 3 MECHANICAL REAR REMOTE CONTROL VALVES ( 1 NON CONFIGURABLE ) WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN
Запчасти Case IH MAXXUM 140 (35.204.BE[12]) - VAR - 333844, 743741 - 3 MECHANICAL REAR REMOTE CONTROL VALVES ( 1 NON CONFIGURABLE ) WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS

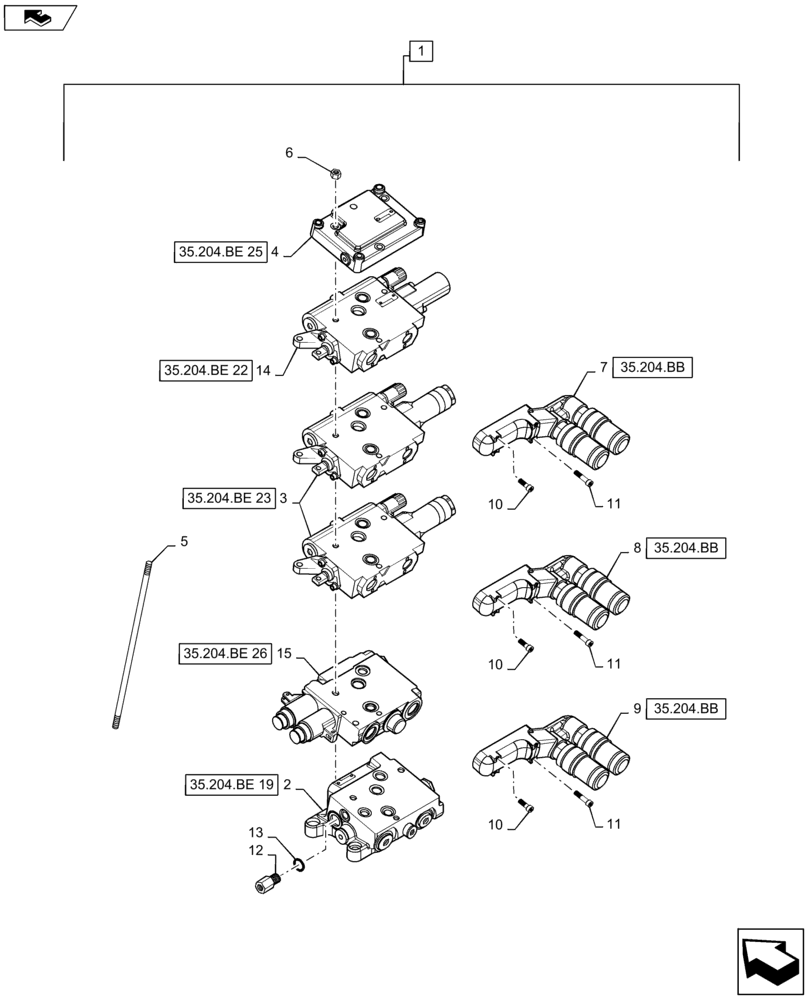

![Схема запчастей Case IH MAXXUM 140 - (35.204.BE[12]) - VAR - 333844, 743741 - 3 MECHANICAL REAR REMOTE CONTROL VALVES ( 1 NON CONFIGURABLE ) WITH PUMP 113 L/MIN CCLS - DISTRIBUTOR - BREAKDOWN (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/5160430.png)
7
4
2
11
10
9
35.204.be 19
13
12
6
home
35.204.bb
35.204.be 26
11
35.204.bb
14
35.204.bb
8
10
3
10
11
35.204.be 22
35.204.be 25
5
1
35.204.be 23
15
1
87311422
CONTROL VALVE
Incl 2 - 15
1шт.
2
87730706
CONTROL VALVE
1шт.
2
87730706R
REMAN-HYD VALVE
1шт.
2
87730706C
CORE-VALVE HYD
Return Number
1шт.
3
87328572
HYD VALVE SECTION
2шт.
4
5192188
BODY
1шт.
5
47123183
STUD,M8
3шт.
6
5195169
NUT,M8
3шт.
7
87381964
QUICK MALE COUPLING
1шт.
8
87381963
QUICK MALE COUPLING
1шт.
9
87381958
QUICK MALE COUPLING
1шт.
10
47129474
HEX SOC SCREW,M6 x 35mm
6шт.
11
47129475
HEX SOC SCREW,M6 x 50mm
6шт.
12
5191704
CHECK VALVE
1шт.
13
5191705
O-RING,9.4mm D x 2.1mm Thk
1шт.
14
87546169
CONTROL VALVE
1шт.
15
84175671
VALVE SECTION
1шт.
